SpeedoMeter.WinForms 1.1.0

🏎️ SpeedoMeter for Windows Forms

A professional-grade, hardware-accelerated Radial Gauge & Speedometer UI Control library for Windows Forms. Perfect for automotive dashboards, SCADA setups, telemetry tracking, and real-time metric visualization.

✨ Key Features

• 🚀 Zero Dependencies: Pure C# implementation utilizing optimized native GDI+ rendering.
• ⚡ Hardware Accelerated: Built-in double-buffering protects against frame tearing and flickering.
• 🎨 25+ Needle Presets: Includes vintage pointers, modern sleek arrows, and glowing sci-fi indicators.
• 🚦 Multi-Phase Status Zones: Easy parameterization for safe, warning, and critical range limits.
• 🛠️ Full Designer Integration: Seamless integration into the Visual Studio Property Grid.

📦 Installation

Install the package via your preferred development terminal tool:

.NET CLI

dotnet add package SpeedoMeter.WinForms

Package Manager

Install-Package SpeedoMeter.WinForms

PackageReference

<PackageReference Include="SpeedoMeter.WinForms" Version="1.1.0" />

🚀 Quick Start Guide

1. Visual Studio Designer

1. Install the NuGet package in your target project environment.
2. Rebuild your workspace structure (Ctrl + Shift + B).
3. Drag the SpeedometerControl tool directly out of your Visual Studio Toolbox onto your form.

2. Programmatic Setup Example

using System.Drawing;
using System.Windows.Forms;
using SpeedoMeter;

public partial class MainForm : Form
{
    public MainForm()
    {
        InitializeComponent();

        var gauge = new SpeedometerControl
        {
            Location = new Point(20, 20),
            Size = new Size(300, 300),

            // Value Range Definition
            MinValue = 0f,
            MaxValue = 220f,
            Value = 65f,
            UnitLabel = "km/h",

            // Needle Matrix Customization
            NeedleStyle = NeedleStyle.ModernSleek,
            NeedleColor1 = Color.Red,
            NeedleColor2 = Color.DarkRed,

            // Zone Guard Configuration
            ZoneGreenEndValue = 100f,
            ZoneRedStartValue = 160f
        };

        this.Controls.Add(gauge);
    }
}

🎨 Needle Style Portfolio (NeedleStyle)

Change the layout design of your application gauge instantly by applying one of these supported enum values:

• 🛰️ Modern collection: ModernIndicator, ModernThin, ModernBlocky, ModernSleek, ModernCutout, ModernDualLine
• 🛩️ Classic & Aviation: ClassicTapered, ClassicWide, VintageAviator, VintageThinWithTail, VintageArtDeco, VintageCrescentTail
• 🏹 Tactical & Sci-Fi: Arrowhead, Broadhead, CrossbowBolt, Harpoon, SciFiArrow, SciFiDataSpike, EnergyBlade
• 🔱 Ornate variants: OrnateDiamond, OrnateSpearTip, OrnateSword, OrnateFleurDeLis, CompassNorth, AnchorTail, SimplePin

⚙️ Core Configuration Properties

🧩 1. Value Tracking Mechanics

• Value (float): The current target index point on the display.
• MinValue (float): The bottom scale floor baseline.
• MaxValue (float): The upper structural ceiling endpoint.
• UnitLabel (string): Text overlay directly underneath the numeric metrics (e.g., "km/h").

📐 2. Geometric Layout Parameters

• ScaleStartAngle (float): Mapping origin offset angle expressed in degrees (Default: 135).
• ScaleSweepAngle (float): Total length span of the circular tracking scale track (Default: 270).
• GaugePadding (int): Outer margin buffer separating the control bounding frame from layout assets.
• ValuePosition (PointF): Focused alignment parameters specifying coordinates for text strings.

🚥 3. Threshold Range Indicators

• ZoneGreenEndValue (float): Target split boundary marking where the green zone gives way to yellow.
• ZoneRedStartValue (float): Scale tracking milestone where warnings elevate into red alerts.
• ZoneGreenColor (Color): Hex or system paint value applied inside your application's safe operational ranges.
• ZoneRedColor (Color): Accent palette bound directly to emergency display status tracking zones.

🏗️ Internal Paint Sequence Pipeline

The library relies on a property-drawn layout engine. The background script sequentially computes your layouts from back-to-front within an isolated OnPaint routine loop:

1. DrawOuterShadow() - Drops an ambient background alpha layer.
2. DrawFace() - Generates your base underlying gradient fill.
3. DrawBezel() - Renders a distinct 3D exterior containment frame.
4. DrawInnerBezelShadow() - Distributes edge shade parameters for visual immersion.
5. DrawZones() - Computes safe vs hazardous sector arcs across your track map.
6. DrawTicks() - Places reference step marks along with scale strings.
7. DrawNeedle() - Applies your active layout calculations for tracking lines.
8. DrawValueLabel() - Centers high-contrast data numbers underneath indicators.
9. DrawGlassEffect() - Places a distinct ambient light reflect map over front faces.

🎯 Platform Compatibility Support

• Framework Architectures: .NET Framework 4.6.2, 4.7, 4.8+
• Modern Environments: .NET 6.0-windows, .NET 8.0-windows (and future frameworks)

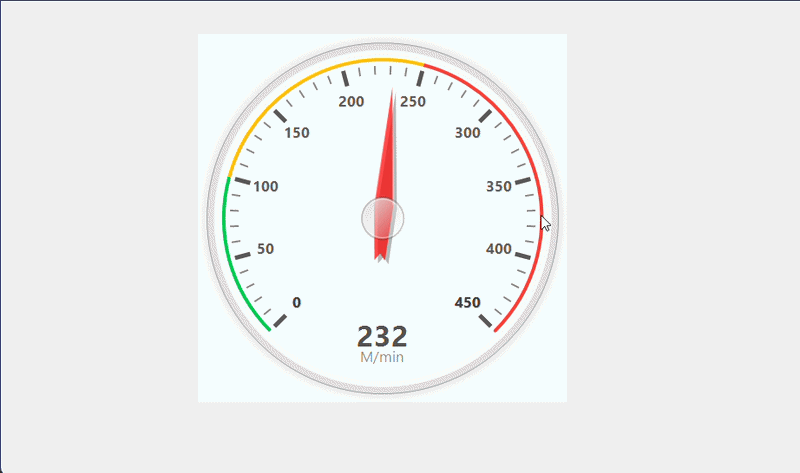

📸 Preview

🔗 Resources & Project Links

• Repository Tree: GitHub Main Repository
• Ticket Pipelines: Bug Reports & Core Feature Requests
• License Matrix: Protected under standard open-source parameters via the MIT Initiative Guidelines License.

Designed and built with absolute structural focus by the GRIT Engineering Team (Growth, Resilience, Intensity, Tenacity).
