XMAMan.SoundEngine 0.0.1

SoundEngine-Examples

This project shows how to use the XMAMan.SoundEngine-NuGet-Package.

The XMAMan.SoundEngine-NuGet-Package can be used for creating sounds in your games, for creating a audiorecorder or creating a audioplayer.

• Usecases if you want to create a game:

  • case 1: playing backgroundmusic. Example: marioUnderground.mp3
  • case 2: play tones that can be held indefinitely and where the frequency is adjustable. Example: movingDownSound.wma
  • case 3: play tones with a predefined length created by a oscillator-signal-source. Example: hitGroundSound.wma
  • case 4: play a simple mp3/wma/wav-file

• Usecases if you want to create a audiorecorder:

  • case 5: use the microphone and change your voice by using effects like hall/delay or sound like a robot. Example: RobotAndHallEffect.mp3

• Usecases if you want to create a audioplayer:

  • case 6: play a audiofile and visualize the frequency bands

To use this NuGet-Package, you need the MusicMachine-editor where you define your songs. This editor can be found here: MusicMachine.exe

This editor is needet for creating *.music-files, which can be used from the XMAMan.SoundEngine-NuGet-Package for playing music.

The project from here contains three wpf-projects to show how to use all cases. For case 1 to 4 there is the AudioOutput-project which looks like this:

You can create with the mouse red balls, which are moving up or down and creating sounds during this.

For case 5 there is the AudioInput-project:

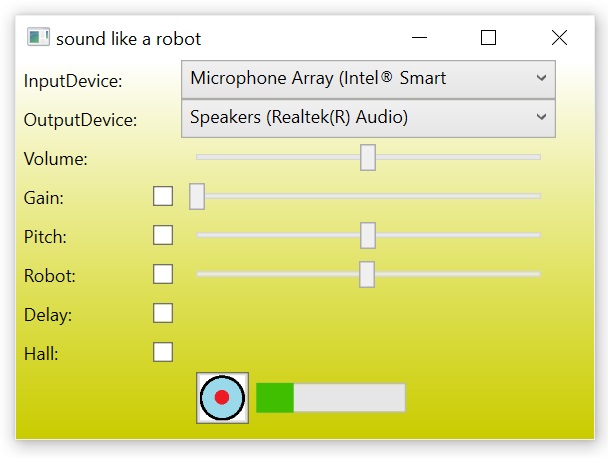

and case 6 is shown by the AudioPlayer-project: which can play and visualize an audiofile.

Usecases if you want to create a game

Case 1: playing backgroundmusic

Case 1 Step 1: Define the backgroundmusic in the MusicMachine-Editor to create a *.music-file

If you want to play background music, then you can use a midi File as starting point and modify this file or you create your own songs by defining the notes and instruments by your own.

In our case we want to use a midiFile as starting-point and modify this file.

Download the midiFile from this exampleproject from here and save it in a local folder on your system: Super Mario Galaxy - Retro Theme 2.mid

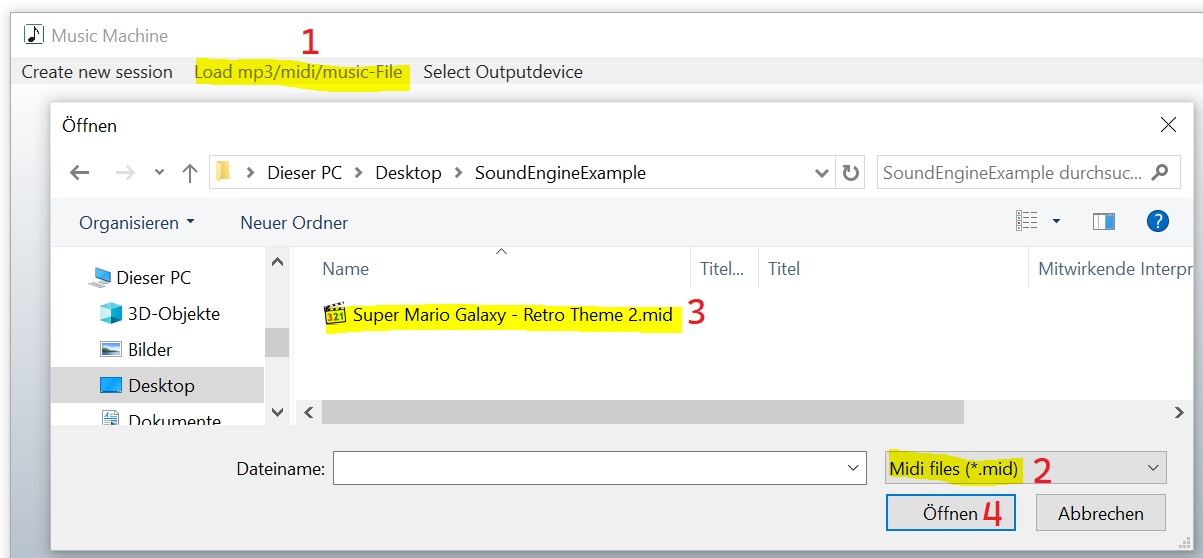

Start at first the MusicMachine.exe and click in the contextbar on "Load mp3/midi/music-File" (1), select *.mid as filetype (2), select the mid-file(3) and click on open (4).

The red rectangles are the notes from this song. You can here the original-midi-sound by pressing the "Play Midi"-Button (see (1) in the image). With (2) you stop the original-midi-output. With the "IsPlaying"-checkbox (3) you start the playback by using the synthesizer. (4) will change the volume. Durring the playback you see that the blue line is moving forward. This is the actual playposition. If you activate the AutoLoop-checkbox (5), then the blue line will jump automatically to the start if it reached the end of the song.

This is your music-file after loading the mid-file: background1.music

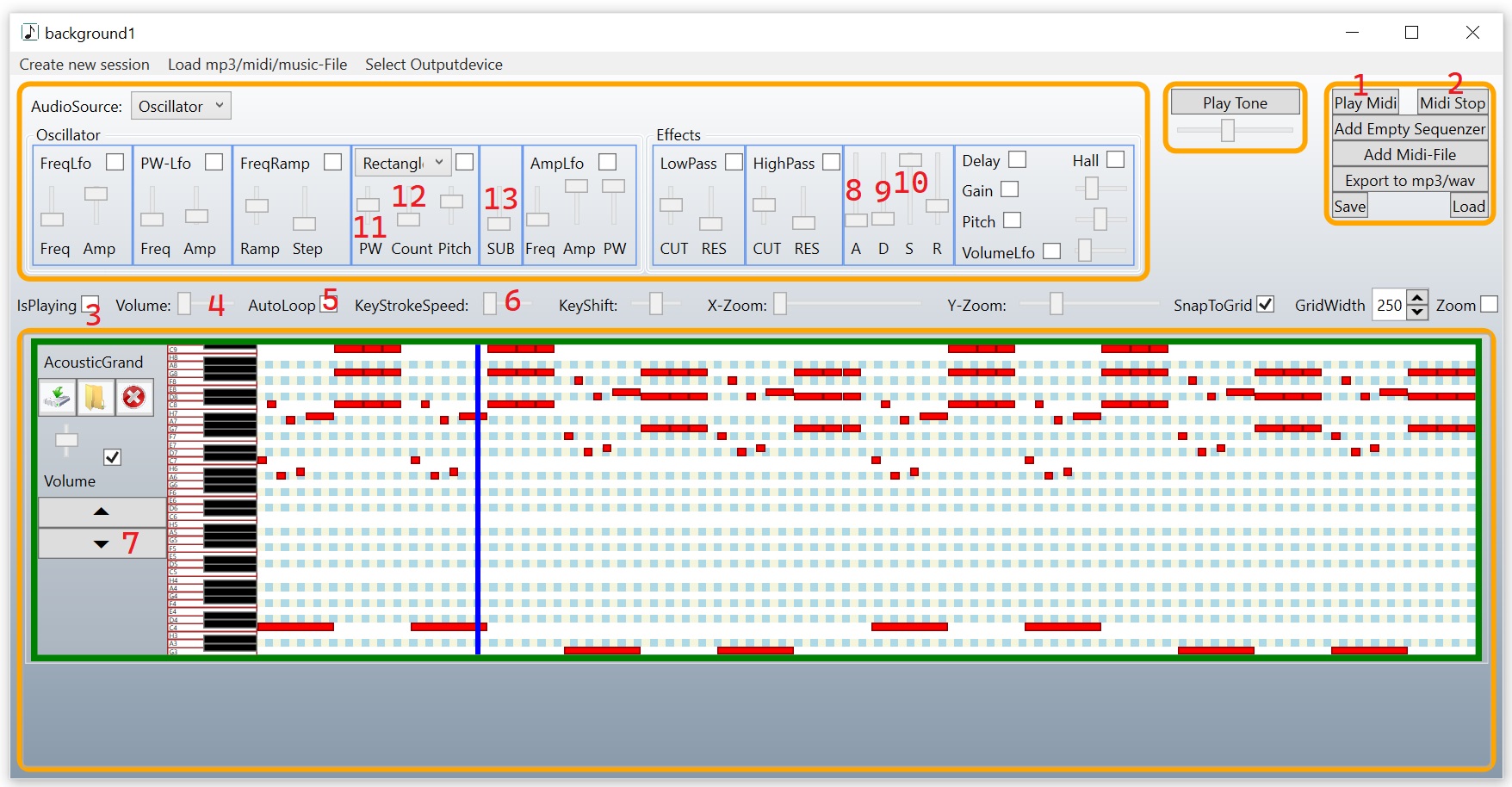

The speed from this song is slow so we increase the KeyStrokeSpeed with the slider (6) a little bit. Also the pitch from the song is very high so we will bring it down by 4 octaves by pressing button (7) 4 times.

This two changes produces a song that sounds like this: background2.mp3

This is your music-file after KeyStrokeSpeed-increase and octave-shift: background2.music

The next change will be the keydown-speed from a single Piano Key Press. Move the AttackTime-Slider (8) completly down and the Decay-Time-Slider (9) is only a little bit over zero. This two changes will increase the keydown-speed. The next change is the sustain volume-change by moving slider (10) down. This ensures that the sound is less sustained.

We are using a rectangle-signal at the moment. With the pulsewidth-slider (11) can we change the form from this signal. If we move this slider a little bit up then it sounds better. The Count-Slider (12) defines, how many rectangle-signals are used. Move this slider down so we are only using one signal-source. Increase a little bit the SUB-Slider (13). This will add a second rectangle-signalsource but with a lower pitch. This is our bass.

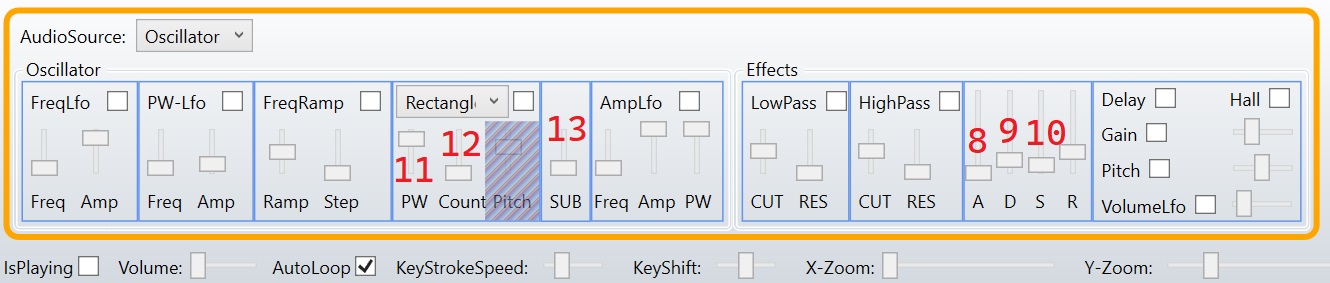

Your settings should now look like this:

And produces a sound like this:

background3.mp3

This is your music-file after changing PW, Count, SUB, A,D,S: background3.music

For the high chords we want to use a different instrument. To do this we add the the midi-File again and split the song into two instruments.

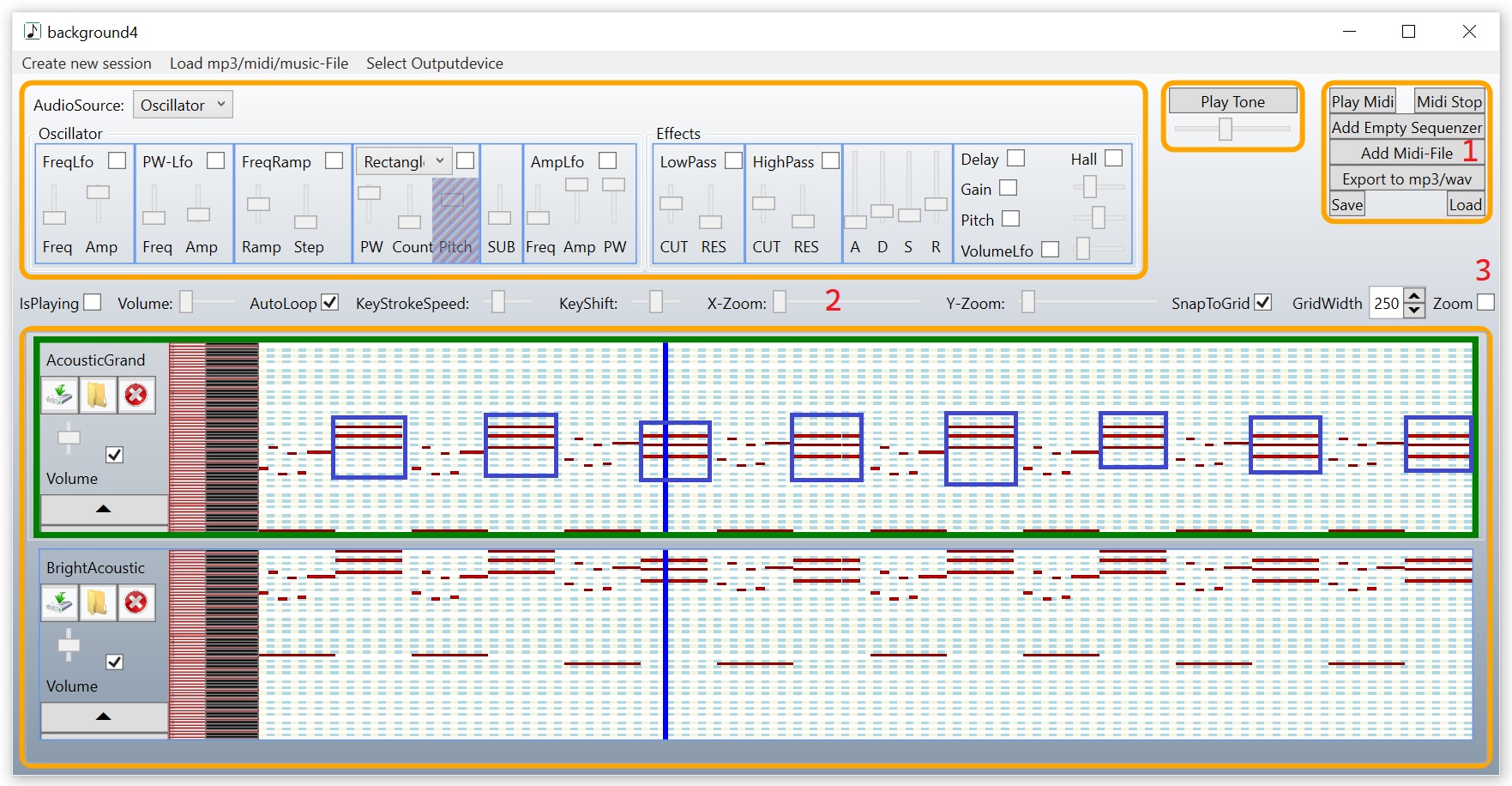

Press at first on the "Add Midi-File"-Button (1) and change the Y-Zoom-Slider (2) which will only change the visual appearance. So both sequencer should be visible. Use also the Zoom-Checkbox (3) which will fit the notes into the view. The blue marked notes are the accords from this song and we want to use a other instrument for this notes.

This is your music-file after adding the mid-file again as second sequencer: background4.music

Mark the notes (blue marked in the image) block by block by holding the left mouse down and select with a selectionrectangle the accord-notes in the upper sequencer. After selection press the delete-key to remove the selected notes. Do this for every accord-note-block. Do this also for all not-accord-notes in the second sequencer. Then you should get this result:

This is your music-file after removing in the first sequencer the blue marked accord-notes and in the second sequencer the not-accord-notes: background5.music

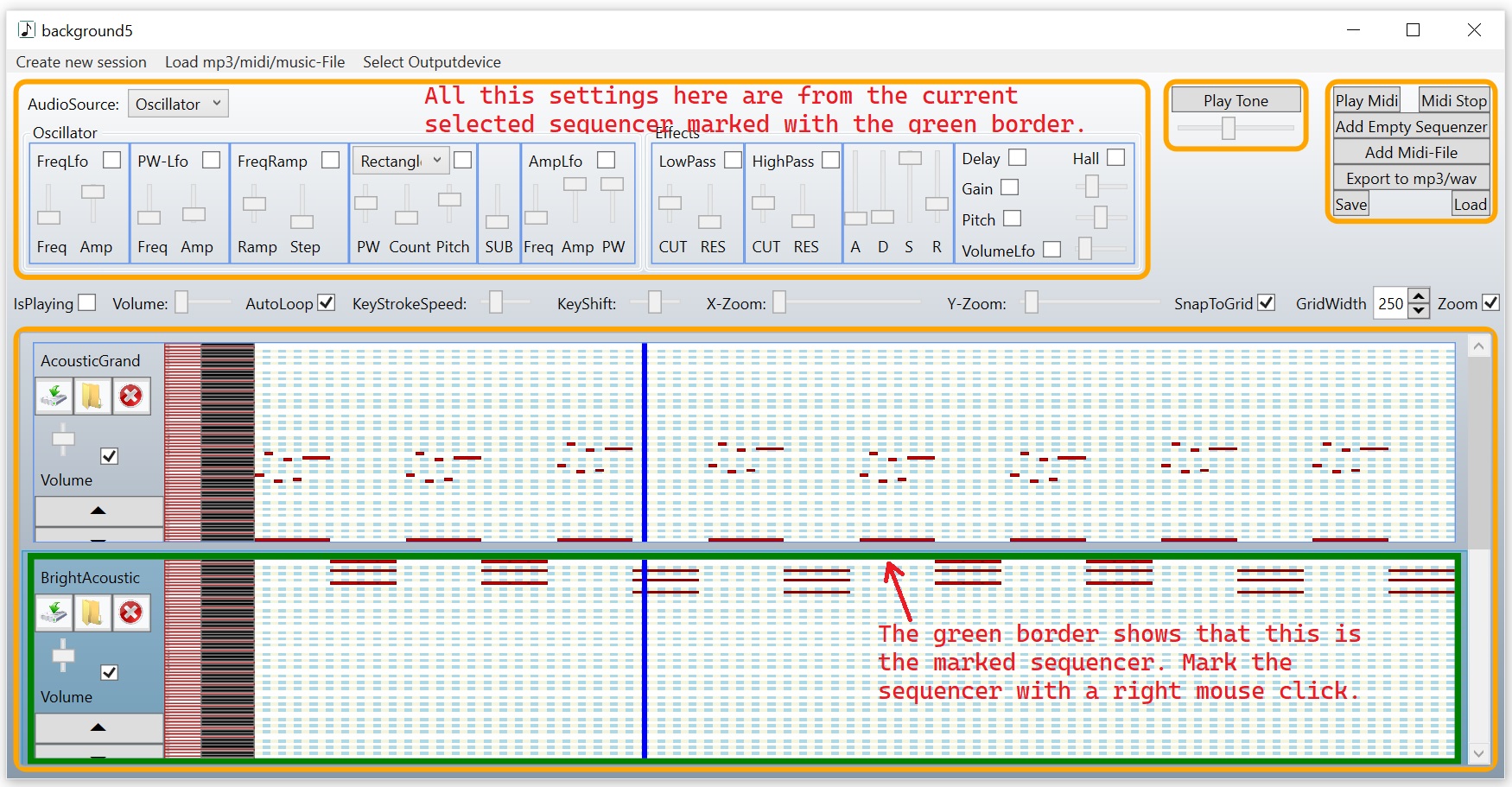

If you right-click on the sequencer then you see, that the green border is changing so you see, that this sequencer is selected now. You will also see, that the settings in the upper area will change, if you switch between the upper and lower sequencer.

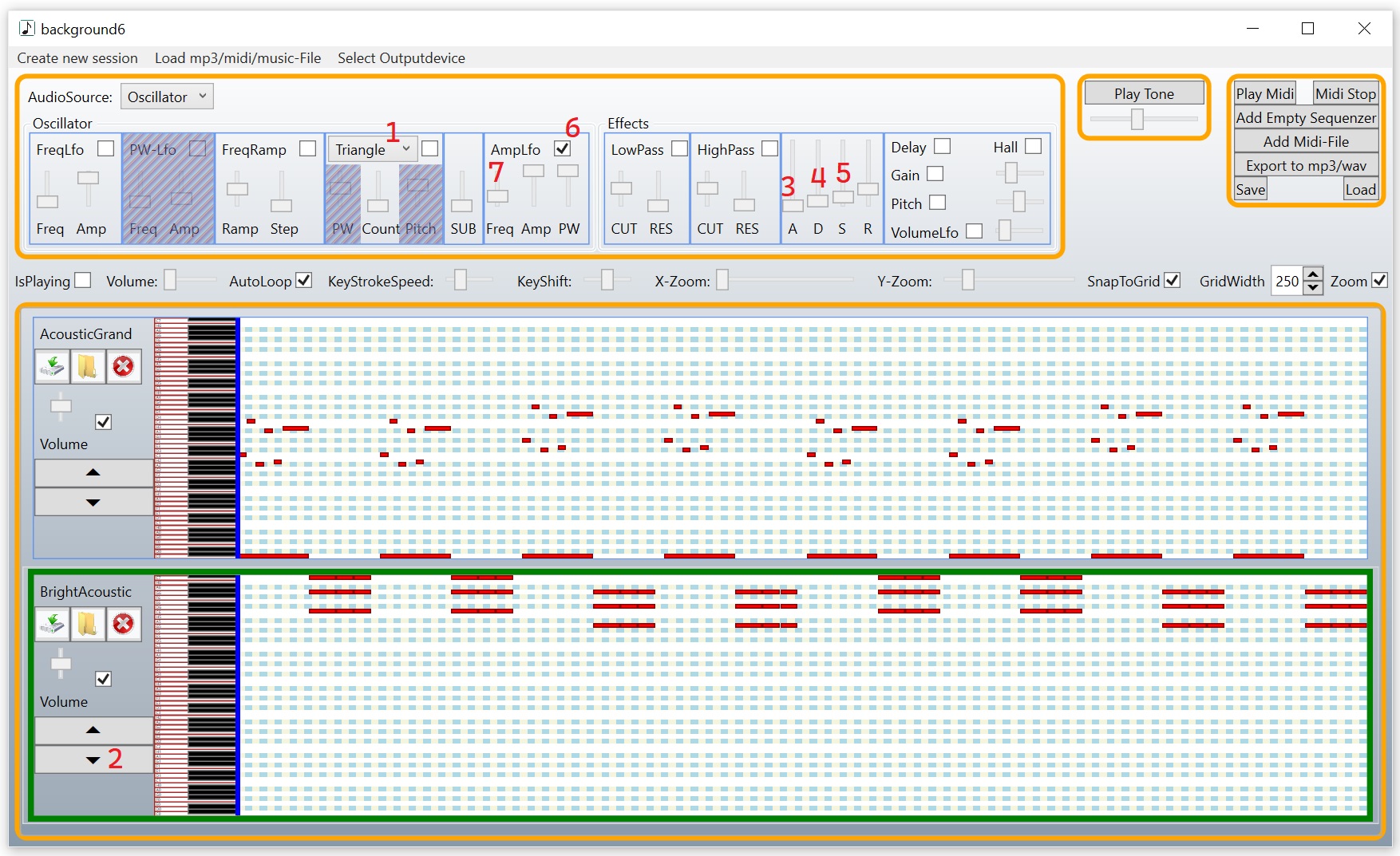

The next step is now to define the instrument for the accord-notes. Select with a mouse-right-click the second sequencer. For this sequencer we will use a Triangle-Signal.

Use the signal-source-combobox (1) and select "Triangle" and we change again the pitch by two octaves down by pressing Button (2) two times. For the attack-time (3) we use again zero and the decaytime (4) becomes also a low value. The sustain-volume (5) should now a little bit higher then for the first sequencer because this are accords here. To get a flutter effect we use the amplitude-low-frequency-oscillator (6) and change the frequence for this oscillator a little bit (7).

All your settings should now look like this for the second sequencer:

And produce this song: background6.mp3

Save now this file as a *.music-file by pressing the "Save"-Button in the upper right area. You can find the file from this example here:

background6.music

Case 1 Step 2: Use the *.music-file in your game

For this step: Open the AudioOutput-project from here: https://github.com/XMAMan/SoundEngineExamples/tree/master/Source/SoundEngineExamples.sln

If you now want to use the *.music-file in your game-project you have to use the XMAMan.SoundEngine-NuGet-Package and create a SoundGenerator-object. This object will start intern a audio-timer which will produce the sound. The SoundGenerator-class implements the IDisposable-interface so you have to call the Dispose-method after receiving the Windows.Closed-event. With AddMusicFile you will load the *.music-file into the memory and get a IMusicFileSnipped-object, were can control the playback from the backGround music.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator;
	private IMusicFileSnipped backGroundMusic;    // This controls the background music

	public ViewModel()
	{
		this.soundGenerator = new SoundGenerator();

		this.backGroundMusic = soundGenerator.AddMusicFile(WorkingDirectory + "background6.music");

		this.backGroundMusic.Volume = 0.5f        // 0..1 here you can change the volume from you backGroundMusic
		this.backGroundMusic.AutoLoop = true;     // start the playback again if the end is reached
		this.backGroundMusic.KeyStrokeSpeed = 2;  // play with duplicated speed
		this.backGroundMusic.KeyShift = -1;		  // decrease the pitch by one octave

		this.backGroundMusic.Play();              // start playback
	}

	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

Case 2: play tones that can be held indefinitely and where the frequency is adjustable

Case 2 Step 1: Define the instrument in the MusicMachine-Editor to create a *.music-file

In our next case we want to simulate a ball, which is falling down. Durring the movement there should be a sound, where the pitch is changing. This type of sound have no predefined length because we don't now how far will the ball falling. To define how such a sound sounds like we use again the MusicMachine-Editor and create again a *.music-file but now we don't have to define any notes. Start at first the MusicMachine.exe and click on "Create new session" (1) in the context bar and then on ok (2) in the dialog.

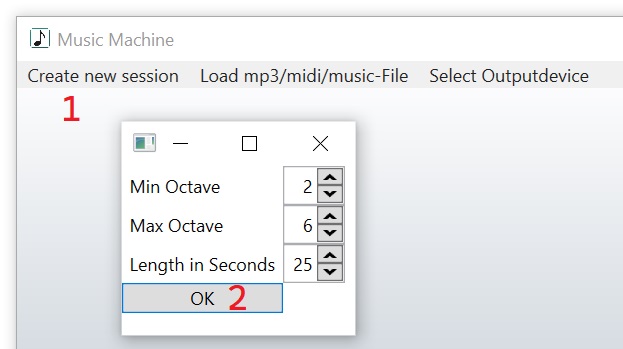

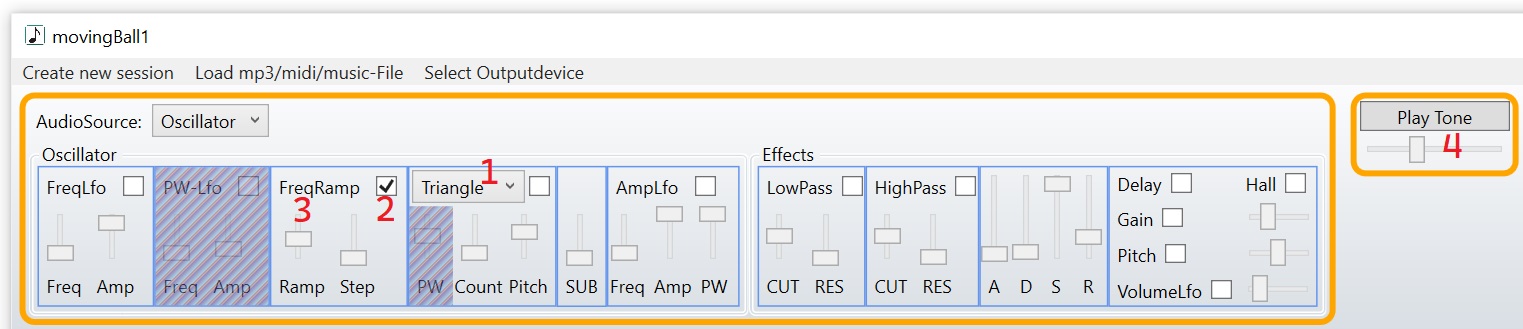

We will use a Triangle-Signal (1) and FreqRamp-Effect (2). This effect will automatically decrease the pitch. Move the Ramp-Slider (3) a little bit down to increase to pitch-down-speed. With the Test-Tone-Slider (4) we define the starting-frequency. Move this slider a little bit left the decrease the starting value. Press the "Play Tone"-Button and hold it to hear the sound.

See: movingBall1.music

If the ball is created with a left click, then it should move down and play the just defined sound. If the user use the right mouse then the ball should fly up and for this case we want to define a other sound, where the pitch goes up. We will also save this second sound in the same *.music-file. To do so click on "Add Empty Sequenzer" (1) in the right top window area and then right click on the second sequencer (2) the mark this. We use the Triangle-Signal (3) again and also the FreqRamp-Effect (4). But now we move the Ramp-Slider (5) a little bit up which will increase the pitch durring playback.

You can test the second sound by clicking on the "Play Tone"-Button again. With the Slider below (6) you define the start-frequency. A better way of starting the Test-tone-playback is pressing "A" for the first sequencer and "S" for the second sequencer. Hold this keys pressed.

If you hold "A" then the moving-down-sound sounds like this: movingDownSound.wma If you hold "S" then the moving-up-sound sounds like this: movingUpSound.wma

Hold the "S"-key pressed and then change the Count-Slider (7) a little bit up to increase the signal-source-count and the Pitch-Slider (8) a little bit down. Each signal-source will use a slightly modified frequency. Change also die FreqRamp-Effect (4) durring holding "A" or "S" to here how the sound is changing durring playback.

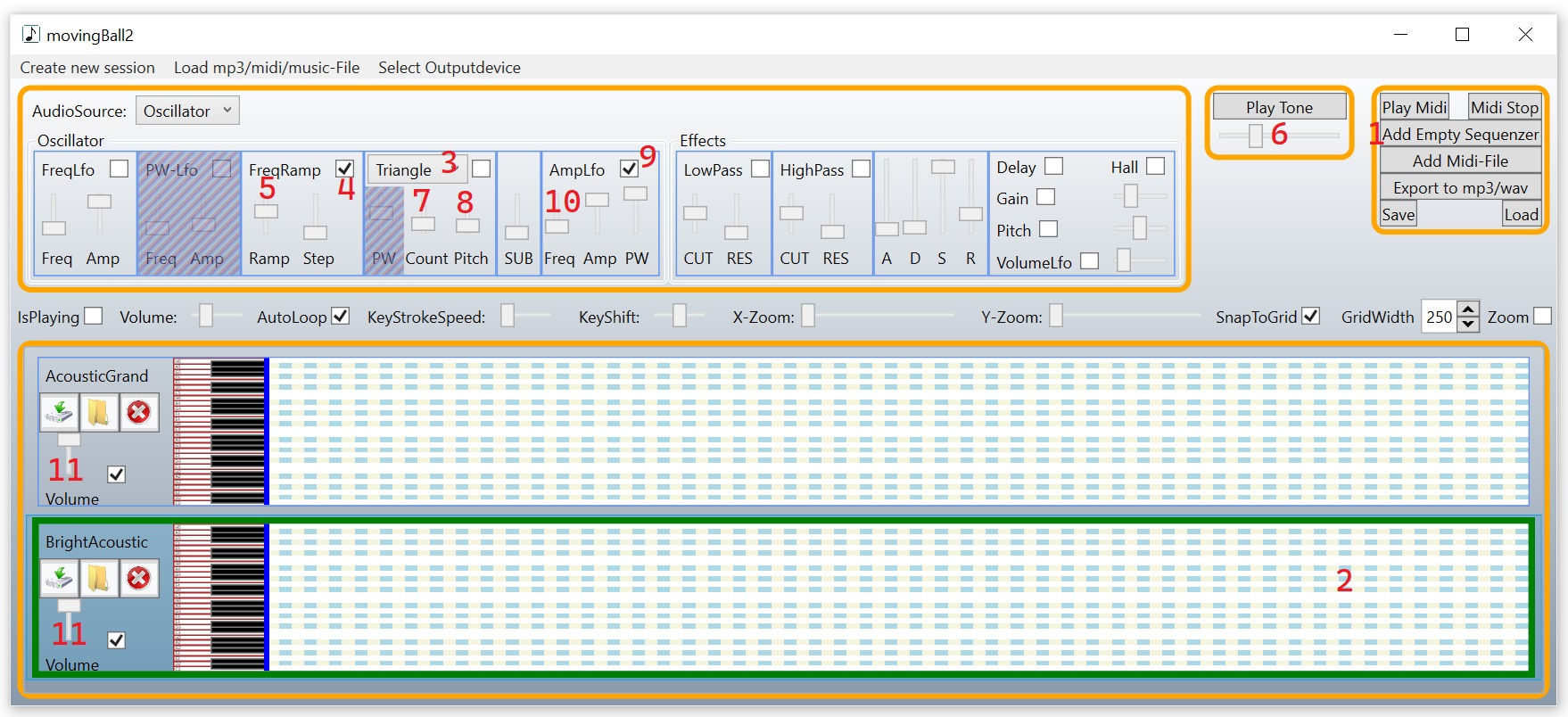

For the moving-up-sound we will also use the Amplitude-Low-Frequency-Oscillator (9) with a low frequency (10). You can change from each sequencer his own soundvolume by using the slider on the left side from the sequencers (11).

This is our created music-file: movingBall2.music

Case 2 Step 2: Use the *.music-file in your game

We have now a *.music-file with two different instruments. To use this in code use again the SoundGenerator-object but instead of using the AddMusicFile-method we are using AddSynthSoundCollection. This method returns a IFrequenceToneSnipped-array with two items in our case because we have defined two sequencers.

The following example show, how to read the music-file and start the playback from a tone with no predefined length. You have to call Stop to end the playback.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator;
	private IMusicFileSnipped backGroundMusic;    // This controls the background music

	public ViewModel()
	{
		this.soundGenerator = new SoundGenerator();

		var movingSounds = this.soundGenerator.AddSynthSoundCollection(WorkingDirectory + "movingBall2.music");

		IFrequenceToneSnipped movingDownSound = movingSounds[0];
		IFrequenceToneSnipped movingUpSound = movingSounds[1];

		movingDownSound.Play();             // First call from Play: start playback

		movingDownSound.Play();				// second call from Play: This will start the playback again from the beginning

		//... wait as long as you want

		movingDownSound.Stop();
	}

	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

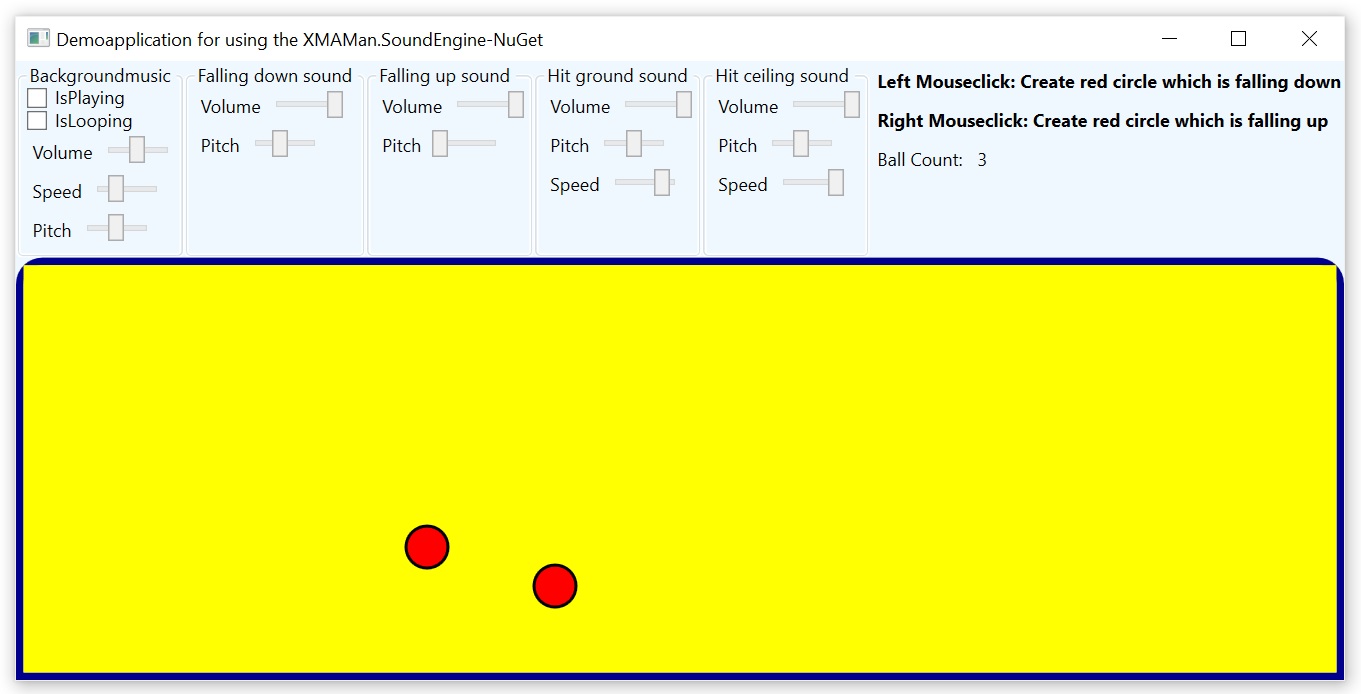

In the demoapplication a left-mouse-click creates a ball which is falling down. If you click multiple times then you can create multiple balls. In this case every ball has its own fallingdown-sound and we need for each a own IFrequenceToneSnipped-object, where the ball can control the playback from Play/Stop.

If you want to play the same sound multiple times then you need to use the GetCopy-method. This is needet, if you have multiple objects (in our example balls), which are creating the same sound but each sound has his own start- and stop-time. You can call Play/Stop for each sound (ISoundSnipped-object) as often as you want. If your object, which is creating the sounds is destroyed, then its recommended to Dispose the ISoundSnipped-object. Otherwise the SoundGenerator will hold a reference on this object and if you create with GetCopy many ISoundSnipped-objects, then the memory-usage would become bigger with the time.

var movingSounds = this.soundGenerator.AddSynthSoundCollection(WorkingDirectory + "movingBall2.music");

IFrequenceToneSnipped movingDownSound = movingSounds[0];

var movingDownSound1 = movingDownSound.GetCopy();
var movingDownSound2 = movingDownSound.GetCopy();

movingDownSound1.Play();              // Play is now used for movingDownSound1 and not for movingDownSound
movingDownSound2.Play(); 			  // call Play for 	movingDownSound2. This will create a second playback for this sound.

//... wait as long as you want

movingDownSound1.Stop();
movingDownSound2.Stop();

//If you don't need the movingDownSound1-object anymore, then you should Dispose it
movingDownSound1.Dispose();

//the same for movingDownSound2
movingDownSound2.Dispose();

}

Case 3: play tones with a predefined length created by a oscillator-signal-source

Case 3 Step 1: Define the instrument and the tonelength in the MusicMachine-Editor to create a *.music-file

If the ball hits the ground, we want to play a drum-sound. This sound should be defined with the MusicMachine-Editor. So start the editor and create a new session and use the default-settings. The sound should sound soft so we use a sinus-signal (1). We also want multiple signalsources so we increase the Count-Slider (4) and change the Pitch (5) a little bit. This will create a sinus-sound with choruseffect. The sound should decrease so we use the FreqRamp-Effect (2) and move the Ramp-Slider (3) a little bit down. The drum should play short so we set the attack-time (6) and the sustain-volume (8) to zero. The decaytime (7) defines the length from our sound. Since the sound is currently very quiet we are using the Gain-Effect (9) and move the gain-slider (10) a little bit left.

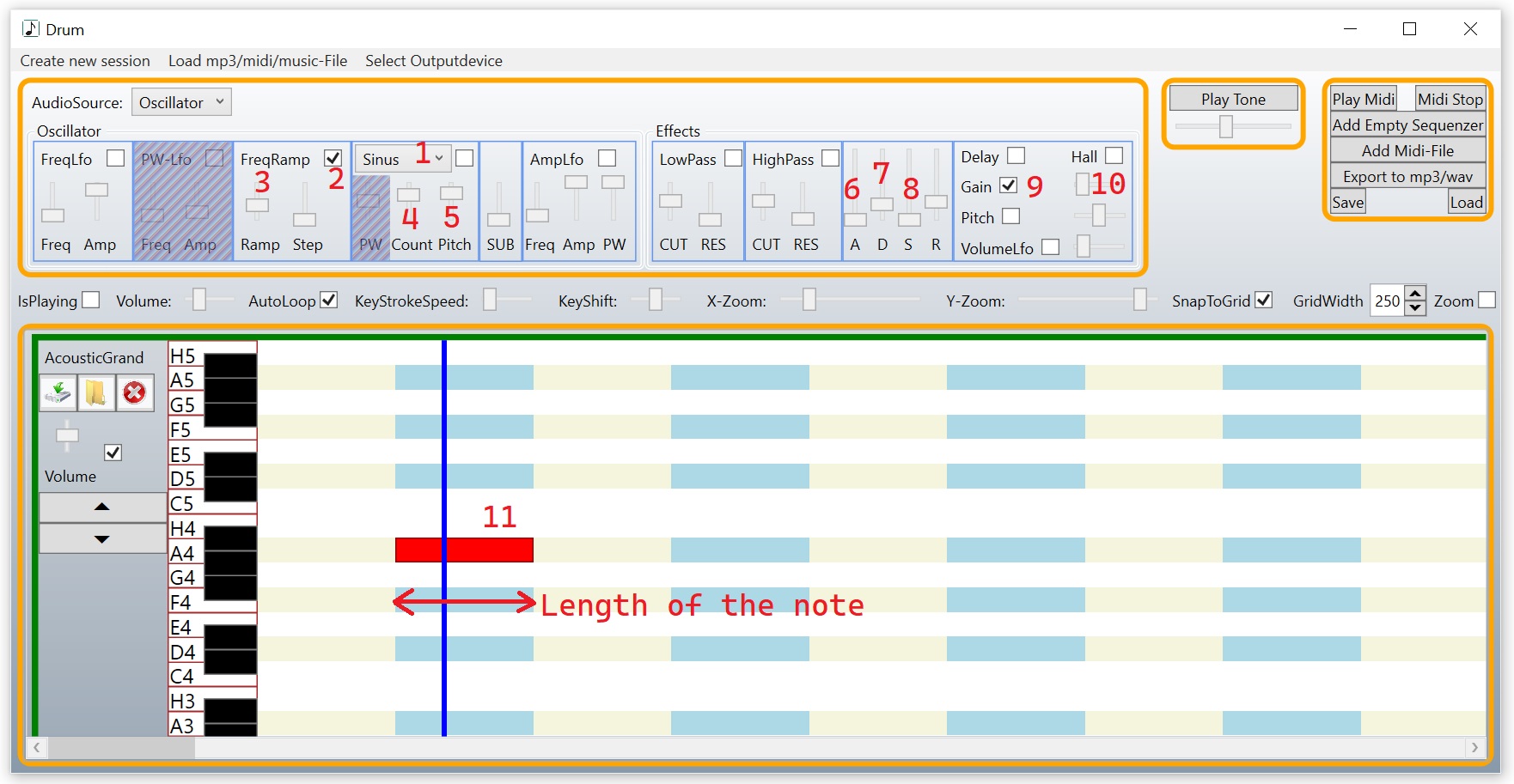

We now add a single note by left-clicking in the sequencer-note-area (11). You can move the right side from the rectangle(note) to the left or right to define the key-down-time. With this single note our *.music-file has now a predefined length and we don't need the stop-command durring using in the game.

This is our created music-file: Drum.music

Case 3 Step 2: Use the *.music-file in your game

The usage from the ground-hit-sound is similar to the usage from the background-music. Both examples uses a *.music-file as input. The difference is, that the background music contains multiple notes and sequencer and the hit-sound has only one sequencer with one note. We are using the GetCopy-method here because we want to create this song for each ball-object so the song can be played multiple times. GetCopy creates a new instance from this song and saves it in the SoundGenerator. The hitSound should only played one time and after that we can remove the copy from the SoundGenerator by using the EndTrigger to register a handler, which is called after the song was played. We call in this handler "hitSound.Dispose()" to remove the hitSound-copy from the SoundGenerator.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator;
	private IMusicFileSnipped hitGroundSound;                       // This controls the sound when the ball hits the ground

	public ViewModel()
	{
		this.soundGenerator = new SoundGenerator();

		this.hitGroundSound = this.soundGenerator.AddMusicFile(WorkingDirectory + "Drum.music");

		//create a copy from the hitGroundSound-object and saves it in the SoundGenerator.
		ISoundSnippedWithEndTrigger hitSound = this.hitGroundSound.GetCopy();


		hitSound.EndTrigger += () =>
		{
			hitSound.Dispose(); //remove the hitSound-object in the SoundGenerator
		};

		hitSound.Play(); //start playing the hitSound

	}

	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

Case 4: play a simple mp3/wma/wav-file

To play a mp3/wma/wav-file you only need to add it to the SoundGenerator with AddSoundFile and you can play it then with Play. If you want it to play mulitple times at the same time then use again the GetCopy-function and call Play for every copy.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator;
	private IAudioFileSnipped hitCeilingSound;                      // This controls the sound when the ball hits the ceiling

	public ViewModel()
	{
		this.soundGenerator = new SoundGenerator();

		this.hitCeilingSound = this.soundGenerator.AddSoundFile(WorkingDirectory + "427788__fullmetaljedi__metal-to-glass05-broke-it.wav");

		//create a copy from the hitCeilingSound-object and saves it in the SoundGenerator.
		ISoundSnippedWithEndTrigger hitSound = this.hitCeilingSound.GetCopy();


		hitSound.EndTrigger += () =>
		{
			hitSound.Dispose(); //remove the hitSound-object in the SoundGenerator after playing it one time
		};

		hitSound.Play(); //start playing the hitSound one time

	}

	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

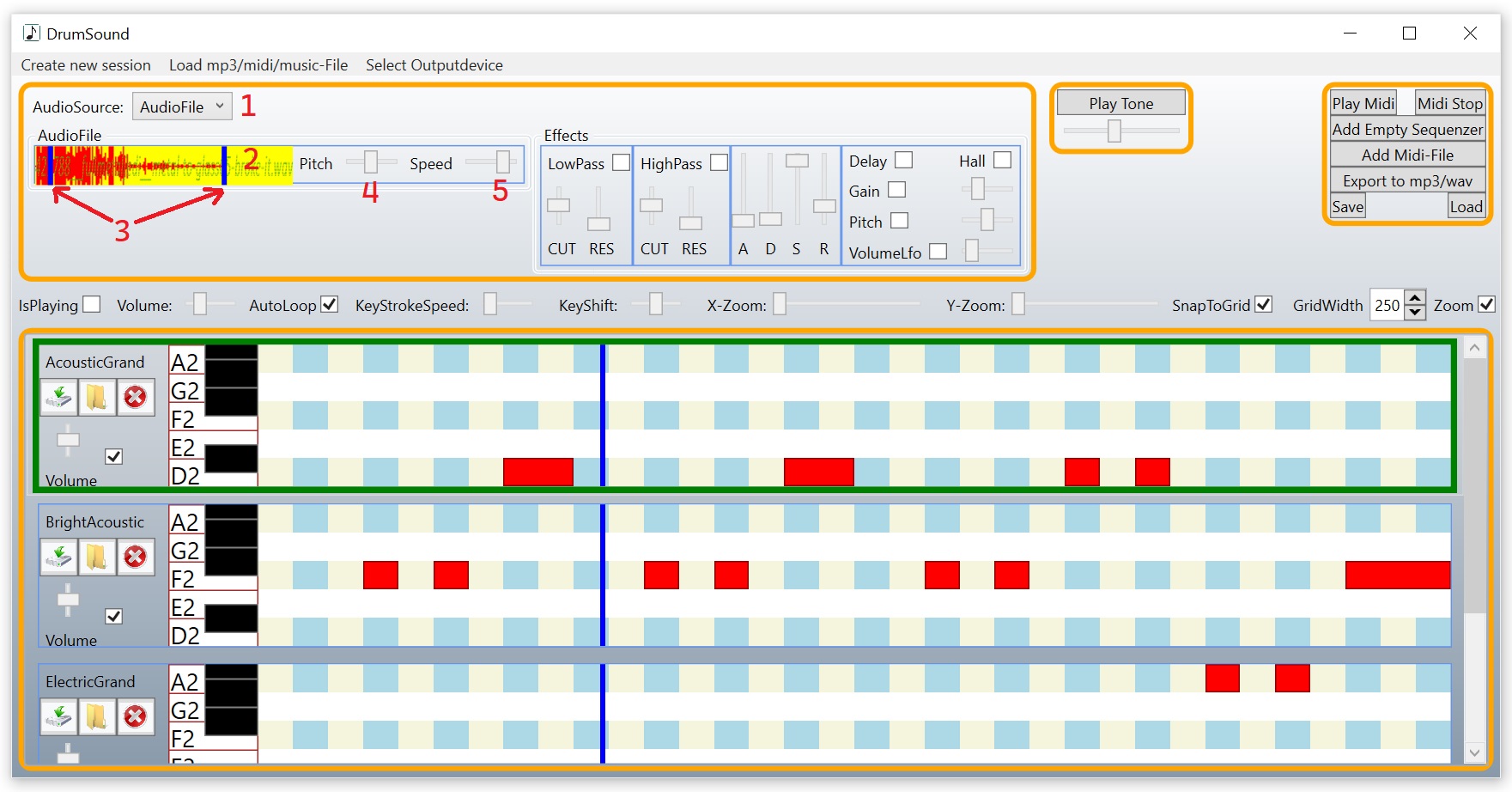

You can also use a audiofile in the MusicMachine and create your own songs with it. For doing this add a empty sequencer and use AudioFile as audiosource (1). Click on the yellow rectangle (2) and select a mp3/wma/wav-file to open it. After that you can move the blue sliders (3) to define the start- and stop-time. You can change the pitch (4) and speed (5) from this audiofile. Create now notes in the sequencer-area below. You can use the same audio-file multiple times by inserting multiple sequencers and define for each sequencer then your own values for pitch and speed.

This could be a song only created with a single *.wav-file with three different pitches.

This music file DrumSound.music creates this song: DrumSound.mp3

Usecases if you want to create a audiorecorder

For this step: Open the AudioInput-project from here: https://github.com/XMAMan/SoundEngineExamples/tree/master/Source/SoundEngineExamples.sln

If you want to use a audioinput-device, then you have to use the AudioRecorder from the SoundGenerator-object. This will save the data from the microphone in the float-list 'recordData'. If you press the StartStop-Button, then you can save the recorded data as mp3-file.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator = new SoundGenerator();                          // This comes from the XMAMan.SoundEngine-NuGet-Package

	private List<float> recordData = new List<float>();									   //This saves our data from the microphone
	private bool isRecording = false;

	public ReactiveCommand<Unit, Unit> StartStopCommand { get; private set; }

	[Reactive] public double OutputVolume { get; set; } = 0;							   //This property is used for showing the output volume

	public ViewModel()
	{
		this.soundGenerator.AudioRecorder.StartRecording();

		//handler for the audio-output-timer
		this.soundGenerator.AudioOutputCallback += (sender, buffer) =>
		{
			if (this.isRecording)
			{
				this.recordData.AddRange(buffer);
			}

			this.OutputVolume = buffer.Sum(x => Math.Abs(x)) / buffer.Length;
		};

		//handler for the StartStop-Button
		this.StartStopCommand = ReactiveCommand.CreateFromTask(async () =>
		{
			if (this.isRecording)
			{
				//Stop recording and save recorded data into mp3-file.
				this.isRecording = false;
				this.soundGenerator.AudioFileWriter.ExportAudioStreamToFile(this.recordData.ToArray(), this.soundGenerator.SampleRate, "output.mp3");
			}
			else
			{
				//Start recording and clear the recordData-buffer
				this.isRecording = true;
				this.recordData.Clear();
			}
		});
	}


	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

After calling StartRecording, all audiodata from the selected audio-input-device is send to the current selected audio-output-device. To switch the current selected audio-device there are this functions:

string[] inputDevices = soundGenerator.AudioRecorder.GetAvailableDevices();
soundGenerator.AudioRecorder.SelectedDevice = inputDevices[0]; //here you select which input device to use.

string[] outputDevices = soundGenerator.GetAvailableOutputDevices();
soundGenerator.SelectedOutputDevice = outputDevices[0];	//use outputdevice with index 0

The sound, which comes from the microphone can be modified before sending it to the output device. To do this enable by example the hall-effect with this:

soundGenerator.AudioRecorder.UseHallEffect = true;

You can use this demo-application for this cases:

Case 1: You have a telephone call and want to sound like a robot.

You need two headsets connected to you computer. Headset 1 is placed beside your computer and headset 2 is on your head. In the demoapplication use headset 1 for audiooutput and headset 2 for audioinput. Go the the soundsettings on you windows-system and use headset 1 as input-device for your stereomixer. In your telephone-app use stereomix as inputdevice and headset 2 as outputdevice. Activate the robot-effect in the demoapplication from this example here and the other person from your call will hear your voice with the robot-effect.

Case 2: You want to here a video from youtube with hall/robot-effect

You need two headsets connected to you computer. Headset 1 is placed beside your computer and headset 2 is on your head. In the demoapplication use the stereomix as audioinput and headset 2 as audiooutput. In the windows-soundsettings use headset 1 as default-outputdevice and the stereomix uses headset 1 as input-source. If you now play a video from youtube then headset 1 is used for output and the stereomixer will use this data as a virtual microphone. The demoapplication from here is using the unmodified audiosignal from youtube and will it modifie and play it on headset 2, which is located on your head. You will hear the youtube-video with changed sound.

Case 3: You want to record your own voise

Select your headset/microphone-array as input-device and and use "NoOutput" as output-device. This is necessary otherwise you would hear your own voice about your speakers at the same time as you hear your voice from you mouth. That sounds confusing. Now you can press the record-button and speak. After pressing the button again you can save your audio data as mp3/wav-file.

Usecases if you want to create a audioplayer

For this step: Open the AudioPlayer-project from here: https://github.com/XMAMan/SoundEngineExamples/tree/master/Source/SoundEngineExamples.sln

You can create a audiplayer and visualize the audiodata by doing two steps. Step 1 is that call AddSoundFile which adds the audiodata from a file to the SoundGenerator-object. Then you have two options for audio-data-visulisation. Option 1: Show the lowpass-signal with GetLowPassSignalImage. Option 2 is a spectrum analyzer.

The spectrum analyzer is the black area and the lowpass-signal the image blow:

If you hear a low frequence signal, then the left side is changing and if you here a high frequence signal then the right side is changing in the spectrum analyzer. Use by example the background6.mp3-file to see this effect.

class ViewModel : IDisposable
{
	private SoundGenerator soundGenerator = new SoundGenerator();                          // This comes from the XMAMan.SoundEngine-NuGet-Package
	private IAudioFileSnipped audioFile = null;
	private AudioFileAnalyser analyser = null;

	[Reactive] public BitmapImage SampleImage { get; set; }		//Option 1 for visulisation: single image
	[Reactive] public float[] FrequencySpectrum { get; set; }	//Option 2 for visulisation: spectrum analyzer

	public ViewModel()
	{
		this.audioFile = soundGenerator.AddSoundFile(openFileDialog.FileName);

		this.analyser = new AudioFileAnalyser(this.audioFile.AudioFileSamples, this.audioFile.SampleRate);

		//Option 1 for audio-visulisation: Create a image which shows the low-frequency-signal.
		this.SampleImage = SignalImageCreator.GetLowPassSignalImage(analyser, this.ImageWidth, this.ImageHeight).ToBitmapImage();

		//Option 2 for visulisation: spectrum analyzer
		this.timer = Observable.Interval(TimeSpan.FromMilliseconds(100))
		.Subscribe(x =>
		{
			//Timer-Action
			if (this.audioFile != null && this.analyser != null)
			{
				double position = this.audioFile.SampleIndex / this.audioFile.SampleCount;
				this.FrequencySpectrum = this.analyser.GetFrequenceSpectrumFromTime(position);
			}
		});
	}

	public void Dispose()
	{
		this.soundGenerator.Dispose(); 			  // Destroy the AudioTimer inside from this object
	}
}

xmlns:controls="clr-namespace:AudioWpfControls.Controls;assembly=AudioWpfControls"

<controls:SpectrumAnalyzer Values="{Binding FrequencySpectrum}" Width="600" Height="200" />
