Plugin.Maui.Shimmer 0.1.0

Plugin.Maui.Shimmer

A shimmer/skeleton-loading control for .NET MAUI, drawn entirely with Microsoft.Maui.Graphics (a GraphicsView overlay) — no third-party rendering dependency.

How it's meant to be used

ShimmerLayout wraps placeholder shapes — plain BoxViews and Borders standing in for a mimic of an avatar or a line of text or a card — and sweeps the shimmer over them while data is loading.

<Grid>

    <shimmer:ShimmerLayout x:Name="Shimmer" IsLoading="True">
        <VerticalStackLayout Spacing="12">
            <Border StrokeShape="RoundRectangle 18"
                    shimmer:ShimmerLayout.IsContainer="True">
                <Grid ColumnDefinitions="56,*" ColumnSpacing="12">
                    <BoxView WidthRequest="56" HeightRequest="56" CornerRadius="28" />
                    <VerticalStackLayout Grid.Column="1" Spacing="8" VerticalOptions="Center">
                        <BoxView HeightRequest="14" CornerRadius="7" WidthRequest="140" />
                        <BoxView HeightRequest="11" CornerRadius="6" WidthRequest="190" />
                    </VerticalStackLayout>
                </Grid>
            </Border>
        </VerticalStackLayout>
    </shimmer:ShimmerLayout>

</Grid>

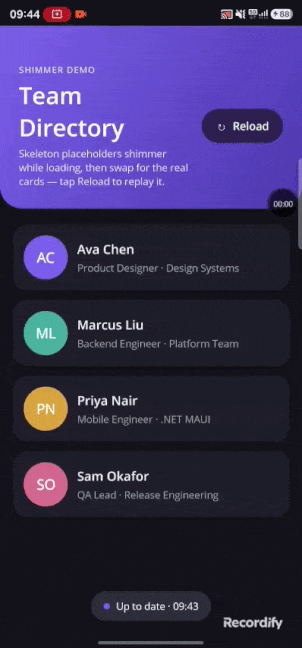

See example/Plugin.Maui.Shimmer.Example/MainPage.xaml for the full working demo above.

Bindable properties

Attached properties

Alternatives

Syncfusion's MAUI Toolkit ships a Shimmer view too, and it's a reasonable option if you're already pulling in the toolkit for other components. Two differences worth knowing before you choose:

• It's part of the whole Syncfusion MAUI Toolkit — adopting it for one control means taking the dependency on the full toolkit.
• Its shapes come from a fixed set of built-in presets.

Plugin.Maui.Shimmer has no dependency beyond Microsoft.Maui.Controls, and there's no preset system: you build the skeleton out of your own layouts and BoxView/Border shapes, so it matches whatever you're loading exactly rather than the closest built-in shape.

Project structure

src/Plugin.Maui.Shimmer/         the library (net10.0-android, net10.0-ios)
  ShimmerLayout.cs                the ShimmerLayout control
  Internals/                      drawable, layout-flattening, and extension helpers
  Handlers/                       shared handler partials go here
  Platforms/
    iOS/Handlers/                 iOS-specific handler implementation
    Android/Handlers/             Android-specific handler implementation
example/Plugin.Maui.Shimmer.Example/   a MAUI app demonstrating the skeleton/real-content pattern above

Getting started

dotnet add package Plugin.Maui.Shimmer

Or open Plugin.Maui.Shimmer.slnx and run the Plugin.Maui.Shimmer.Example project.

License

MIT — see LICENSE.
