MartenStudio 0.9.1

Marten Studio

An embeddable Blazor Server admin UI for MartenDB, shipped as an MIT-licensed Razor Class Library built on Postgres Studio. You add AddMartenStudio() to your container and MapMartenStudio() to your endpoint pipeline, and the studio runs inside your own ASP.NET Core application against that application's own configured IDocumentStore — browsing document collections and their JSON, inspecting and steering event streams, projections and the async daemon, running guarded queries and managing schema. Everything it knows, it knows because you configured Marten that way: aliases, duplicated fields, soft delete, tenancy, projections and metadata columns all come from your StoreOptions. That is the whole reason a Marten UI beats pgAdmin, and it is why the studio is keyed on IDocumentStore and never on a connection string.

It is not a standalone application, not a fleet monitor and not a connection-string tool. There is no "point it at a database" mode, and there never will be — a studio that could be aimed anywhere would have to re-implement everything Marten already knows, and would get it subtly wrong. Both packages are keyed on the databases the host registered, Marten's or not: Marten Studio on its stores, Postgres Studio on its NpgsqlDataSources, each with the application's own role, pool and TLS. If you want production telemetry for a fleet of Marten services, that is CritterWatch's job; if you want a general SQL client, that is pgAdmin's. The niche in between — this process, this store, with Marten's own metadata in front of you and every mutating action off until you turn it on — is what Marten Studio is for.

Registering the studio must never change how your application behaves. No global styles, no component-library version pinned onto your host, no middleware ordering requirement, no altered authentication, no second projection daemon. A host that adds the package and never maps it is byte-for-byte the application it was.

Two packages

Since 0.5 the studio is two packages, released together at one version:

Which to choose. If the application uses Marten, take MartenStudio: it brings PostgresStudio with it, at exactly its own version, and shows everything Postgres Studio shows for the store's databases - the database browser, Sessions, the health advisor and its pages, the SQL console, Relationships - beside the Marten screens. Otherwise take PostgresStudio alone: it references Npgsql and no Marten, JasperFx or Weasel package, and browses the application's own data sources. This README is Marten Studio's; Postgres Studio's is src/PostgresStudio/README.md, with the long form in docs/postgresstudio.md.

One studio per application. AddPostgresStudio() throws in an application that called AddMartenStudio(), and the reverse; each Map*Studio() names the other call to make. Marten Studio's database browser shows what else lives in the store's own databases - a job store, a legacy schema - but a separate plain database of a Marten application is not listed in 0.5.

Upgrade both together. The two assemblies are one program in two files, so MartenStudio depends on exactly its own PostgresStudio ([0.5.0] in the nuspec). A central PackageVersion for PostgresStudio, if your repository has one, must equal MartenStudio's, or be removed. Under CentralPackageTransitivePinningEnabled a central pin at another version makes NuGet drop PostgresStudio from the graph without a warning, so AddMartenStudio() checks at startup and throws an InvalidOperationException that says which version to pin.

Screenshots

Overview — one card per store, with tenancy, stream identity and the databases behind it	The same page in the dark theme, which follows the theme picker behind the header's gear button
Documents — the collections rail, the search grammar and its index verdict	One document: JSON on the left, everything the row's metadata columns say on the right
A stream's timeline, each event's JSON and headers, with aggregate time travel beside it	Dead letters, expanded to the failing event and its exception
Projections and the async daemon: shard state, progression and the high-water mark	Schema — what Marten would change, before anything is applied
Relationships — the foreign keys StoreOptions declares, cross-checked against the ones Postgres holds	Health — findings by area, each with its evidence, how sure the advisor is and what to change
Database — every table, view, function, trigger, sequence and type beside the store, Marten's own told apart; here a Quartz.NET job store	A table's rows: a filter with its index verdict, keyset paging over a composite key, typed headers and "≈ date" hints
One row: every column, what it points at and what points at it	Relationships over plain tables beside the document types

Install

dotnet add package MartenStudio

One package reference. The studio brings Marten (floor 9.39.0, the first release with the fixes for two critical LINQ injection advisories) and PostgresStudio at exactly its own version, which brings Npgsql (floor 8.0.3) and Microsoft.AspNetCore.App.Internal.Assets (floor 10.0.12, three .js files and an MSBuild target, no runtime assembly), and it takes everything else — Blazor, SignalR, authorization, endpoint routing — from the shared framework, so it pins no ASP.NET Core patch onto your application. Target framework: net10.0. Your application's Npgsql stays the one Marten brings, which is never below Postgres Studio's floor; Marten Studio is tested at the Marten floor and at Marten 9.54.2, and not on Npgsql 10, which no tested Marten brings.

PostgreSQL 14 to 18 are supported, and every release is tested on each. 14 reaches the community's end of life on 2026-11-12, and 19 is supported from its general availability. Below 14 the studio still reads the server, with no promise. A health check that needs more privilege than the reading role has says "not checked", which grant it needs and who can give it on your platform. See docs/postgres-versions.md, and, for Amazon Aurora, docs/aurora.md.

Register and mount

The minimum is two calls, and a decision about who may open it:

builder.Services.AddMartenStudio();

// ...

app.MapMartenStudio().RequireAuthorization();

The studio is then at /marten, read-only, behind whatever RequireAuthorization() means in your application. The sample host does the same thing with every option spelled out — this block is compiled from samples/MartenStudio.Sample/Program.cs, so it cannot drift:

builder.Services
    .AddMarten(options => SampleStore.Configure(options, connectionString))
    .UseLightweightSessions()
    // --no-daemon: Disabled registers no coordinator, which is a host whose projections run elsewhere.
    .AddAsyncDaemon(sample.NoDaemon ? DaemonMode.Disabled : DaemonMode.Solo)
    .InitializeWith<SampleDataSeeder>();

builder.Services.AddMartenStudio(options =>
{
    // Who gets in, and who may change anything: the studio evaluates both against the host's own
    // authorization, and never authenticates anybody itself.
    //
    // --anonymous leaves AuthorizationPolicy unset on purpose. AllowAnonymous() on the mapping does win
    // over a configured policy - the studio's endpoints carry both and AllowAnonymous is what the
    // authorization middleware honours - but saying "this policy governs the studio" and then "anyone
    // may open it" in the same application is two answers to one question, and a demo should show the
    // one it means.
    options.AuthorizationPolicy = sample.Anonymous ? null : SamplePolicies.Studio;
    options.WriteAuthorizationPolicy = SamplePolicies.StudioWrite;

    // Every mutating operation is off until the host says otherwise. `All()` is the one-line, greppable
    // opt-in; `ReadOnly` overrides it whatever it says.
    options.Capabilities = sample.ReadOnly ? new MartenStudioCapabilities() : MartenStudioCapabilities.All();
    options.ReadOnly = sample.ReadOnly;

    // The database browser (Capabilities.BrowseDatabase, part of All()) may also show these schemas: the
    // Quartz.NET job store and the legacy relational schema the sample seeds beside the store. "*" would
    // open every schema the studio's role can use - fine for a scratch database, not for a shared one.
    options.BrowsableSchemas.Add(RelationalDemoSchema.QuartzSchemaName);
    options.BrowsableSchemas.Add(RelationalDemoSchema.LegacySchemaName);

    // The demo's invoices are conjoined multi-tenant. Naming the tenants here is the cheapest of the
    // three discovery tiers and the only one that can answer before any events have been written.
    foreach (string tenantId in SampleStore.TenantIds)
    {
        options.KnownTenantIds.Add(tenantId);
    }
});

and the mapping:

IEndpointConventionBuilder studio = sample.Path is { Length: > 0 } path
    ? app.MapMartenStudio(path)
    : app.MapMartenStudio();

if (sample.Anonymous)
{
    // --anonymous: what an unauthenticated studio looks like. The startup guard accepts this because it
    // is an answer; it refuses only a mapping that says nothing at all.
    studio.AllowAnonymous();
}
else
{
    studio.RequireAuthorization(SamplePolicies.Studio);
}

sample.Anonymous, sample.ReadOnly and sample.Path are the demo's own command-line switches; in your host they are just values. AddMartenStudio() may be called before or after AddMarten() — the scan that finds your stores runs lazily, on first use, when the container is complete.

MapMartenStudio("/ops/marten") mounts the studio somewhere else. The pattern wins over MartenStudioOptions.Path, and the pages, the static assets, the Blazor circuit and the framework script all move with it.

The opt-in health check

The health advisor can also answer an ASP.NET Core health check, which is how the host's own monitoring gets to alert on it. It is opt-in, and this block is compiled from the sample as well:

// Optional, and AddMartenStudio() does not do it for you: the health advisor's configuration and catalog
// checks as one ASP.NET Core health check. It reports codes and counts, never a name, and runs the checks at
// most once per HealthInterval however often the endpoint is probed.
builder.Services.AddHealthChecks().AddMartenStudio(tags: ["marten"]);

Map it the usual way, with app.MapHealthChecks("/healthz"). AddMartenStudio(name, failureStatus, tags, timeout) takes ASP.NET Core's usual arguments (name is marten-studio unless given). Each run sweeps the configuration and catalog checks over every registered store and the databases each one holds, at most 25 a run, and reports failureStatus (Unhealthy unless given) on a Critical finding and Degraded on a Warning, on a check that failed or ran out of time, and on a store that would not build or list its databases. Its data is codes and counts only, never a tenant, a session, a table, a statement or a database name, because there is no visitor to authorize. Concurrent probes share one run and the probes in between are answered from the latest result, so an orchestrator probing every few seconds costs one run per HealthInterval. A host that never calls it is unchanged. The details are in docs/health.md.

Authorization

There are three layers, and two process-wide switches on top of them. All five are yours to configure; the studio authenticates nobody.

1. AuthorizationPolicy — who gets in. Applied to every studio endpoint: the pages, the Blazor circuit and the static assets. RequireAuthorization() on the builder returned by MapMartenStudio() does the same job, and covers the pages and the circuit.
2. StoreAuthorizationPolicy — which store, database and tenant. Resource-based, evaluated against a MartenStoreResource, and asked on every data call rather than only at the scope selector. Listings are filtered rather than annotated: a tenant you may not see is one you never learn exists.
3. WriteAuthorizationPolicy — each mutating call, against the same resource with the capability name attached. Falls back to StoreAuthorizationPolicy when you configure only one.

On top: ReadOnly turns every capability off whatever Capabilities says, and Capabilities decides which mutating operations exist at all.

The startup guard

A mapping that answers none of this refuses to start, before the web host binds a listener:

Marten Studio is mapped with no authorization. Its pages can read and edit every document in every Marten store in this process, archive event streams, control the projection daemon, apply schema changes and run SQL, so Marten Studio refuses to start rather than serve that by accident. Say which you meant:

• app.MapMartenStudio().RequireAuthorization() authorizes its pages and its Blazor circuit;
• services.AddMartenStudio(options => options.AuthorizationPolicy = "...") authorizes those and the static assets with them;
• app.MapMartenStudio().AllowAnonymous() serves it to anyone, deliberately.

A non-null AuthorizationOptions.FallbackPolicy satisfies this too, since it covers every endpoint that states nothing.

"I forgot to add RequireAuthorization" must not be a silent state, so it is a startup failure instead.

What protects the circuit

Both MartenStudioOptions.AuthorizationPolicy and RequireAuthorization() on the returned builder cover the Blazor circuit as well as the pages — the builder holds the studio's page endpoints and its /_blazor endpoints, so a statement about the studio is a statement about both. That matters: the circuit is the dangerous half, because it is the half that runs components. The studio stamps no AllowAnonymous of its own on /_blazor.

The static assets under _content/PostgresStudio/ (both studios' shell is Postgres Studio's) are package content — CSS and a little JS. With a studio policy configured they carry it too; without one they opt out explicitly, so an application with a fail-closed FallbackPolicy can still load the stylesheet.

Resource-based authorization

MartenStoreResource is what the two store policies are evaluated against:

public sealed record MartenStoreResource(
    string StoreName,           // "default", or the marker interface name of an ancillary store
    string DatabaseIdentifier,  // Marten's database identity - never a connection string
    string? TenantId,           // the selected tenant, or null for a view spanning all of them
    string? Capability);        // "EditDocuments", "RunSql", ... - or null for a read

One handler answers for the scope selector, the page frame and every data call. This example is illustrative — it is not compiled from the sample, which uses plain claim policies:

// Illustrative, not compiled.
public sealed class MartenStudioRequirement : IAuthorizationRequirement;

public sealed class MartenStudioHandler
    : AuthorizationHandler<MartenStudioRequirement, MartenStoreResource>
{
    protected override Task HandleRequirementAsync(
        AuthorizationHandlerContext context,
        MartenStudioRequirement requirement,
        MartenStoreResource resource)
    {
        // Reads: the tenant has to be one this user owns - and a resource with no tenant is every
        // tenant at once, so it takes an explicit all-tenants claim rather than passing for everyone.
        bool mayRead = resource.TenantId is null
            ? context.User.HasClaim("tenant", "*")
            : context.User.HasClaim("tenant", resource.TenantId);

        // Writes: the capability name arrives on the resource, so one handler can be as coarse or as
        // fine as you like - "ops may rebuild, nobody but me may run SQL".
        bool mayWrite = resource.Capability switch
        {
            null => true,
            "RunSql" or "BrowseDatabase" or "ViewDatabaseActivity" or "RunLinqQueries"
                => context.User.IsInRole("dba"),
            _ => context.User.IsInRole("ops"),
        };

        if (mayRead && mayWrite)
        {
            context.Succeed(requirement);
        }

        return Task.CompletedTask;
    }
}

A null tenant is not "no tenant to check" but every tenant at once — the all-tenants view, and every BrowseDatabase read, every ViewDatabaseActivity read, every SQL console run and every operation that reaches a whole shared database (a dead-letter rewind, a progression correction, a rebuild, a schema apply), which are always asked with TenantId = null because nothing narrows them to a tenant — so a handler that let it through for everybody would hand a user scoped to one tenant all of them.

Register it the usual way and name the policy:

// Illustrative, not compiled.
builder.Services.AddSingleton<IAuthorizationHandler, MartenStudioHandler>();
builder.Services.AddAuthorizationBuilder()
    .AddPolicy("MartenStudioStore", policy => policy.AddRequirements(new MartenStudioRequirement()));

builder.Services.AddMartenStudio(options =>
{
    options.AuthorizationPolicy = "MartenStudio";
    options.StoreAuthorizationPolicy = "MartenStudioStore";
    options.WriteAuthorizationPolicy = "MartenStudioStore";
});

With no store policy configured, nothing is asked and everything passes — which is what keeps an application that never set the option exactly as it was.

Capabilities

Fourteen booleans, all false by default and all turned on by MartenStudioCapabilities.All(). A freshly mapped studio is a read-only browser of Marten's own data.

options.Capabilities = MartenStudioCapabilities.All();   // everything: the one-line, greppable opt-in
options.Capabilities.RebuildProjections = true;          // or one switch at a time, from all-off
options.ReadOnly = true;                                 // and this overrides whichever you wrote

Every disabled control says the exact property you would set, spelled the way you would write it:

Editing documents is not enabled. Set MartenStudioOptions.Capabilities.EditDocuments to true, or MartenStudioOptions.Capabilities = MartenStudioCapabilities.All() to enable all of them.

and with the master switch on:

MartenStudioOptions.ReadOnly is true, which turns every capability off: the mutating operations, and the reads authorized like writes (RunSql, BrowseDatabase, ViewDatabaseActivity and RunLinqQueries).

Hiding a button is a convenience. The refusal itself lives in the service layer, where the operation does, because a Blazor circuit is a long-lived object a client can drive — and every refusal is written to the audit log just like a success.

Options

Every property of MartenStudioOptions. Validation runs at startup: a value outside the range given here fails the host with a message that names the option.

RebuildShardTimeout is not a nicety. A rebuild tears the projection's tables down before the timeout starts applying to the replay, so a rebuild that exceeds it stops with the tables already emptied and the operation recorded as failed. The default is an hour, where Marten's own no-timeout overload would have silently used five minutes. Set it generously.

Screens

Overview — one card per registered store: databases, document types, event types, the PostgreSQL version, tenancy, stream identity, event append mode and the schemas in play. A store that will not build gets its own error region rather than blanking the page for the ones that do. A Health tile and the three worst findings of the selected database sit beside the store cards.

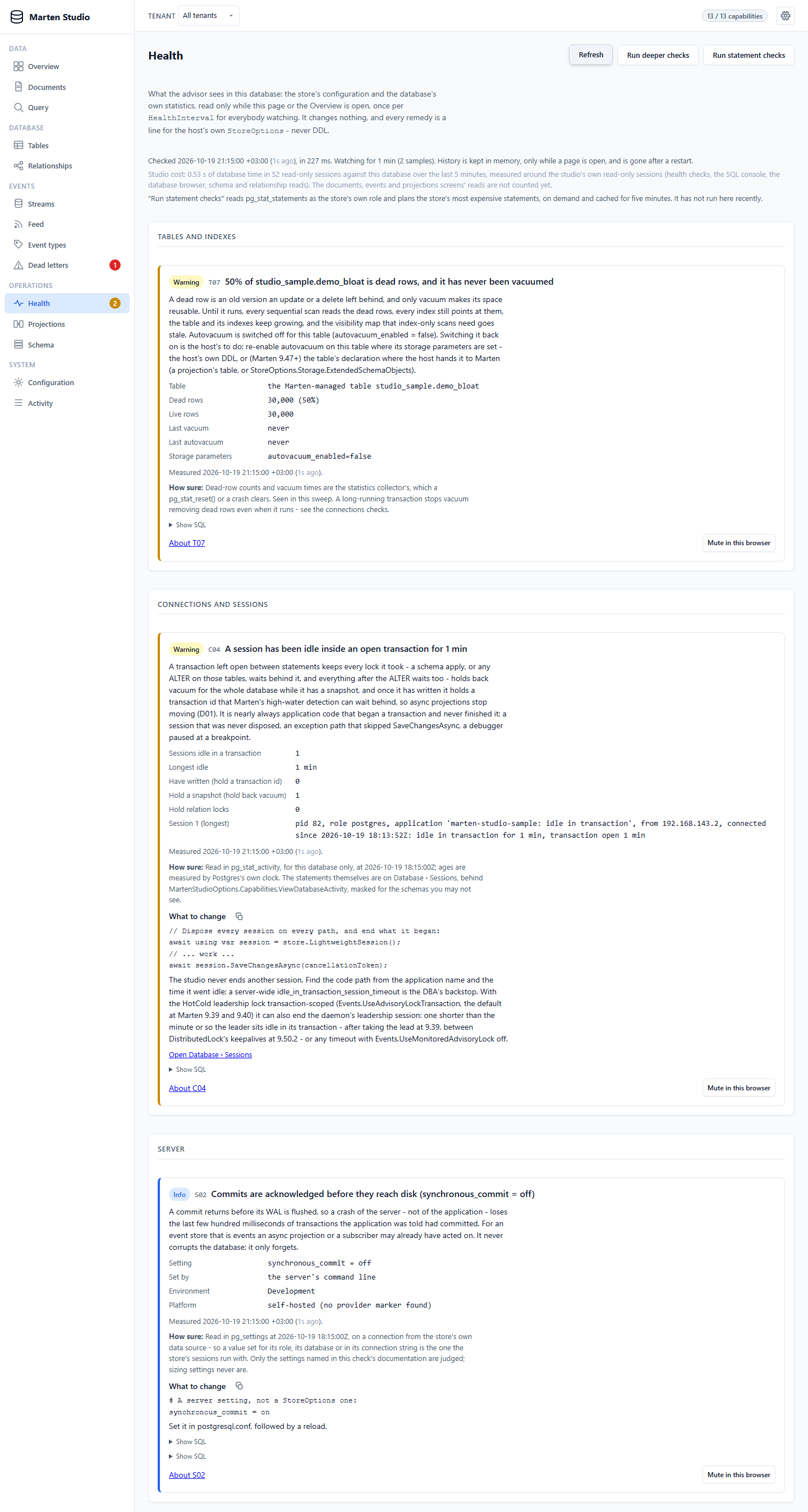

Health — the health advisor, at /marten/health (the long form is docs/health.md, and every code, its variants and what its subject names are in docs/health/codes.md): checks that read Marten's configuration and the database and say what is wrong, how sure they are, and which StoreOptions line would change it — for a table the store declares a remedy is never DDL, and one that needs a newer Marten says so. The table checks judge every table in the store's schemas, and in the schemas BrowsableSchemas admits while Capabilities.BrowseDatabase is on, so a job store or a legacy schema beside the store is judged too: its remedies are migration SQL, shown "for your own migrations - the studio never runs this", and a recognised library's table is left out of the index-design rules. A finding about a table outside the store's own schemas is shown only to a visitor the database browser's gate admits to that schema, and the navigation badge never counts it. They are grouped by area: the daemon and the high-water mark (D), events (E), tables and indexes (T), connections and sessions (C), replication (R), the server (S) and the configuration (K). T20 says when a range-partitioned table is running out of partitions - a time range by its clock, a smallint, integer or bigint range by where its rows stop - with the remedy each kind of range takes (for a static Marten ByRange(), its .AddRange(...) line); T18 says when one tenant holds more than half of a large conjoined table, and names it only to a visitor past the activity gate and that tenant's store policy; C12 names the head of a blocking chain that sits idle in its transaction or has kept others waiting for minutes. Each finding carries its evidence and when it was measured, Show SQL, a caveat such as "counters since stats_reset at 09:14", a link to its section of the docs, and "mute in this browser". A sweep runs only while a Health page or the Overview is open, or when the opt-in health check is probed, at most once per HealthInterval per database however many tabs watch, in the studio's read-only transaction, without DDL and without a lock beyond what a read takes; Run deeper checks reads a bounded slice of the data, and Run statement checks reads pg_stat_statements behind ViewDatabaseActivity. A database-wide number needs the store policy for the database as a whole, and anything that names a session, a role, an address, a statement or a tenant needs ViewDatabaseActivity. The navigation entry carries a severity badge, a toast says when a Critical finding appears, and findings also show where they belong: D01 and D02 as Projections banners, index marks on Schema › Indexes, E05 on Event types. Database › Sessions (/marten/database/sessions) lists this database's sessions, locks and prepared transactions under the same two gates, labels a lock by the store's own table it belongs to, counts sessions by application beside the server's connection budget, and has no cancel or terminate button. Its Blocking tab (?view=blocking) draws who holds up whom as trees - each chain's head, then every session waiting on it - with the head's pg_terminate_backend (and pg_cancel_backend, when it runs a statement) as text to copy for whoever may run it, which the studio never runs; on PostgreSQL 19 it also shows the server's lock waits from pg_stat_lock. Its Holders tab (?view=holders) groups the whole server's client sessions - every database on it, not only this one - by database, application, role and client address, against the connection budget C03 judges: the counts per database for anybody the store policy passes (a database named only where that policy admits them to it, the rest together as "Other databases"), the applications, roles and addresses, and every database's name, behind the activity gate. C13 (an application holding a tenth of the client limit idle while the server is 80% used) and C14 (connections that set no Application Name, Info) are the checks over it. The Health page's Snapshot menu views, copies or downloads what your pages show of the database as JSON, built from your own view of each page.

Statements (Operations, /marten/statements) — where the database's time goes, statement by statement, grouped by Marten operation and document type, behind ViewDatabaseActivity. A statement's Plan link (?queryid=) opens its drill-in: the text, the counters and its generic plan, planned as SqlConsoleRole with its plan insights and What if?, and audited. A write, a locking read, a cut text or one withheld from you gets no plan and says why, and a plan that reads a schema you may not see is not shown.

Maintenance (Operations, /marten/maintenance) — what autovacuum will do next and why: each table against the triggers autovacuum itself uses, what is running now, the workers, the freeze forecast and the vacuum horizon, with an on-demand bloat measure; see docs/health/tables.md.

Storage (Operations, /marten/storage) — how big the database is, how fast it grows and which tables hold the space, from the catalog's own page counts (no size function over a table, nothing locked); the exact size of one table is on its page in the database browser.

Replication (Operations, /marten/replication) — slots, the standbys streaming from the server or a standby's own replay, the archiver, WAL volume, checkpoints, I/O by backend type and tablespaces; names behind ViewDatabaseActivity.

Server (System, /marten/server) — the server's version, platform and uptime, what the studio's reading role can see grant by grant, a curated view of its settings, the extensions it uses and what stands in their way, and the security posture.

Seeing replication lag. On a primary, pg_stat_replication shows a standby's positions and lag only to a role with pg_read_all_stats, which pg_monitor includes. Any other role sees a sender's process id, role and application name. R03 and the Replication page then say "not checked", naming the grant and who can give it on your platform: a superuser when self-hosted, the master user on RDS and Aurora, the server admin on Azure, a cloudsqlsuperuser member on Cloud SQL. pg_monitor also lets the archiver's evidence count the WAL files waiting in archive_status, and the size of pg_wal. Without any grant, a data source that reaches a standby (a multi-host data source) measures lag there instead: what the standby has received less what it has replayed is exact and readable by any role, and so is whether replay is paused. A physical slot's restart_lsn is no substitute: it tracks flush, not replay.

Documents — a collections rail with per-collection counts (estimates, prefixed ~; below ExactCountThreshold the = beside a collection pays for an exact count(*), and above it the studio declines and says so on the badge), then a list with column chooser, keyset paging and a search grammar (field:value, >=, is:deleted, tenant:…) that compiles to parameterised SQL against the duplicated columns and JSON paths Marten actually created. Each search gets an index verdict — green/amber/red with the StoreOptions line that would fix it — and a "Show SQL" disclosure with the statement that ran. The detail view puts the JSON viewer (tree or raw, search, copy, download, "copy as C# record") beside a metadata panel of the row's real columns. With EditDocuments you edit the JSON in place and see a round-trip diff before saving: Marten has no untyped write path, so the edit is deserialized into the CLR type and serialized back, and any property the type does not have is gone — the dialog lists dropped, changed and added properties and refuses the save until you acknowledge the drops. Saves are optimistically concurrent (UpdateExpectedVersion / UpdateRevision); a row that moved comes back as a conflict with nothing written. A save whose JSON carries another id than the document's own is refused, naming both, and from Marten 9.53 the dialog also shows what Marten's own preview of the save (PreviewDocumentJsonAsync) would keep, and holds a save Marten keeps differently or refuses. An Order control lists a collection newest first by last modified, created or revision, where its table has the column. With DeleteDocuments you get delete (soft where the mapping says soft, hard otherwise), undelete, and a bulk delete over the selection.

Database — everything else in the store's Postgres database, for a host that keeps a Quartz.NET job store, a legacy schema or another library's tables beside Marten. A schema rail, and kind tabs for tables, views, functions, triggers, sequences and types; Marten's own objects are quieter, sorted last and linked to where their data is really read, and a Quartz.NET, Wolverine, EF Core, Hangfire or Flyway object is hinted by name. Each object has a detail page — columns, keys and indexes, foreign keys both ways, triggers, a view's query, and its neighbourhood in the relationships diagram — and a table, view or materialized view that is not Marten's has a Rows tab: a col = value / col ~ text / col is:null filter with an index verdict (and "Run anyway" before an unindexed read of a large table), keyset paging over composite keys, typed and sortable headers, JSON and bytea cells opening in the viewer, a "≈ date" hint under bigint columns holding .NET ticks or epoch times, and row detail that follows foreign keys both ways. The structure of the store's own schemas is shown to every visitor, as the Schema screen always did; everything else — other schemas, definitions of what Marten does not own, and every row — needs Capabilities.BrowseDatabase, a schema BrowsableSchemas names (or "*"), and the write policy asked with TenantId = null, because nothing filters those tables by tenant. It is read-only, runs in the same read-only transaction as the SQL console as SqlConsoleRole, locks nothing it lists, and audits the first read of every relation. It never reads the rows of Marten's own document or event tables (they are read in Documents and Events, where tenancy, soft delete and the serializer apply), never reads a foreign table, directly or through a view, never shows a hidden document type or anything built on it, and masks the name of a schema the visitor may not see as ‹withheld› wherever Postgres prints it. A vector, halfvec or sparsevec value is shown collapsed to its type and first components, with Expand and Copy.

Relationships — the document types of the store as a graph: one node per registered type with its collection colour, its .NET type and a reltuples estimate, one arrow per foreign key. What StoreOptions declares and what pg_constraint actually holds are cross-checked, so an arrow is declared and enforced, declared only — configured, never applied, nothing enforcing it — or in the database only, which Marten does not know about and an apply under CreateOrUpdate would drop. Keys into the database's other tables are drawn too, as square, schema-coloured nodes — a Documents / Tables / Both switch and schema chips narrow the picture, composite-key labels leave out the leading columns both primary keys share, and a NOT VALID key is dashed — while a key into a schema the visitor may not see is counted, never named, and a type hidden by IsDocumentTypeVisible appears nowhere at all. Clicking a node opens the collection; hovering an arrow names the column, the target and the delete action. Beside the picture — and, on a narrow screen, instead of it — a table carries the same relationships with the same links, which is also what a screen reader gets. There is no pan, no zoom and no JavaScript: the layout is computed on the server and is a pure function of the configuration, so the same store draws the same diagram every time. On a document's detail page, Referenced by names each collection that points at it and how many of its documents do — exact up to a thousand and "1,000+" beyond that, so the answer never costs a sequential scan — each row linking to that collection already filtered on this document.

Query — three modes, and the asymmetry between the first two is the design. Mode A, a Marten where clause, is a read against one document type and needs no capability, so the service holds it to being a clause: no ;, no statement of its own, brackets that balance, a tail that is [order by …] [limit n] [offset n] and nothing else, no function that reads, writes or waits outside the row, no ::regclass cast — and, without RunSql, no subquery, union, join, lateral or returning either. It runs inside the same BEGIN; SET TRANSACTION READ ONLY; …; ROLLBACK as the console, under the same QueryTimeout and the same optional SqlConsoleRole. Results come back as the data column itself, never round-tripped through a CLR type, the composed statement is shown, and a plan is offered where RunSql allows one (EXPLAIN, never EXPLAIN ANALYZE). Mode B, the SQL console, is arbitrary read-only SQL against the whole database, is gated on RunSql, and is limited by MaxSqlConsoleRows, QueryTimeout, a 3-second lock timeout, a 60-second idle-in-transaction timeout and an optional SqlConsoleRole — inside BEGIN; SET TRANSACTION READ ONLY; …; ROLLBACK. The row cap stops the reader; it never appends a LIMIT to your statement. See Security model and limits. LINQ mode (docs/linq-mode.md), on Marten 9.48+ and gated on RunLinqQueries, takes the predicate your code would write (Status == "Open" && Total > 100) and an ordering, parses them with JasperFx's Dynamic LINQ under its allow-list and the studio's own, and applies them to Marten's own Query<T>() on a session pinned to the scope, so tenancy, soft deletes and hierarchies are Marten's. It shows the rows, the SQL Marten built, its plan (EXPLAIN, never ANALYZE) and index advice with the StoreOptions line that would declare the index. It builds Marten's statement without ToCommand, so it never creates a table, and it runs in the same read-only transaction as the console.

The console's Explain and Explain analyze buttons draw a plan as a tree - each node's type and what it reads, estimated and actual rows and loops, its share of the plan's time or cost, buffers and I/O - and so does an EXPLAIN (FORMAT JSON) you type, and Mode A's plan. EXPLAIN ANALYZE runs only in the console, under RunSql, for a statement its guard accepts and inside its read-only transaction: a write the guard misses is refused by Postgres (25006) and changes nothing. Query › Plan is the same gate as a page of its own: write a statement - or paste the JSON of a plan, which reads nothing - and get it planned, analyzed, or planned as a generic or custom plan of a statement with $1 placeholders, then drawn as a tree and as a sortable table of every node, with a summary strip, the critical path, heat colouring, every key Postgres printed for a node and what each means, and Copy as Markdown / Download for speedscope beside the raw JSON; the console's Open in Plan link carries a statement there. Under every plan, plan insights with stable codes P01-P14 (docs/health/plans.md) point at a row estimate off tenfold, a sort or hash spilled to disk, a lossy bitmap heap scan, a selective sequential scan, a nested loop over a large outer side, a large OFFSET, a leading-wildcard LIKE, parallel workers short of the plan, an index-only scan fetching the heap, a filter discarding most rows after an index, a hash built in batches, JIT costing more than it saves, planning slower than execution and a memoize cache mostly missing. Where the studio suggests an index - under a plan, or in LINQ mode's and the Documents list's index advice - What if? plans the statement again with that one index imagined by hypopg, and draws the plan now and the plan with the index side by side. It creates nothing, and needs hypopg installed in the database, which is your decision; the studio never installs it.

Events — Streams lists and filters streams; stream detail draws the timeline with each event's JSON, headers and metadata, offers aggregate time travel (replayed on demand by Marten's own aggregator over the events up to a version, writing nothing and running no projection; the studio's own read of the events creates and migrates nothing, though an Apply method that loads data through the session it is handed is the host's code and reads as the host wrote it), and a stepper that folds the stream one event at a time with the same fold, showing each event, the aggregate after it and what it changed, where it threw, and the dead letters that name it; and it archives the stream with ArchiveStreams. With CompactStreams it compacts a long stream: Marten's own CompactStreamAsync<T>, on a session pinned to the stream's tenant and database, folds the events up to the version the dialog shows into one snapshot and deletes them, behind a typed confirmation that says so (see docs/compaction.md). Streams also finds a stream by its aggregate's natural key, within the stream's own tenant. Feed is the global sequence, newest first, filtered by event type, sequence range, stream, tenant, a DCB tag (tag:<type>=<value>, with its index verdict) and the archived/skipped flags the store actually has, with a follow mode; each event's tags are chips that link to that filter. Event types counts what the store has seen and lists the tag types with each table's key. Dead letters lists the daemon's failures with the exception, and with ManageDeadLetters discards a record, marks the underlying event as skipped — only on a store that enabled event skipping, because it writes mt_events.is_skipped and a store without that column has no way to express the idea — or rewinds the projection's subscription to the event that failed, behind a typed confirmation that states what gets replayed, where the daemon is hosted in this process. A Grouped by cause view groups them by projection, event type, exception type and message fingerprint, and opens a group as the list.

Projections — every registered projection with its shards, their state and progression against the high-water mark, refreshed from a lazy observer on ShardStateTracker where the daemon is hosted in this process and from polling where it is not. With the capabilities on: pause and resume the projection daemon, restart the high-water agent (ControlDaemon), rebuild a projection behind a typed confirmation (RebuildProjections), and advance or correct progression (CorrectProgression). Pausing is process-wide — it stops the coordinator's leadership runner and then every agent of every database this process hosts for that store — and it is the only stop that holds: with the coordinator running, it restarts any agent it finds missing within LeadershipPollingTime, so per-agent Start and Stop are offered only while the daemon is paused (or, under MartenDaemonModeIsSolo()'s coordinator, which has no leadership loop, always), and each says when it would do nothing: an agent already running, no agent here to stop, or under HotCold a shard another node leads, which it refuses, as it refuses a Rewind from such a node. The card says which agents this node runs, and under what mode. Progression rows nothing registered advances are listed as orphaned progression rows, read-only, with Marten's own removal call for the host. A rebuild outlives the circuit that started it and is tracked by name. A composite projection's members, whose progression rows its own shard advances in one batch, are listed under it and offer no Start or Stop of their own. Where no daemon is hosted in this process, the page says so — that is a value, not an error, and the studio never starts a daemon of its own. Each shard also shows when it last progressed and a small chart of its position against the high water, drawn from the screen's own samples, with a stalled colouring, a trend arrow and an estimated catch-up — and, while it is rebuilt, when the rebuild should finish, measured from the rebuild's own samples; a rebuild in progress is a state on its row, Pause, Stop and Rebuild quote the store's StopAndDrainTimeout, and below Marten 9.50 Start warns that a rebuild started outside the studio cannot be seen.

Schema — five tabs: Drift (what Marten would change), Tables, Indexes, Functions and DDL. Tables shows each table's TOAST size, dead and HOT percentages, last autovacuum and storage parameters (with drift against the configuration on Marten 9.47+), and names each pgvector column with its dimensions; Indexes marks invalid, redundant and unused indexes from the health advisor's last check and says what an HNSW or IVFFlat index's operator class and parameters mean. Nothing here executes DDL on a read path: schema names, declared indexes, managed tables and installed functions come from StoreOptions and Marten's own feature schemas, and Check, Preview and DDL sit behind buttons that say on the button what they may create. What those three show spans the whole database — every tenant's partition by name, every document type's table — so they answer only a visitor the store policy allows for the database with no tenant selected, and, while IsDocumentTypeVisible hides a document type, one past the database browser's gate (Capabilities.BrowseDatabase and the write policy). An apply migrates the whole database, every tenant, whichever tenant is selected, so both policies are asked about the database as a whole. Tables says whose each table is by the database browser's rules, rolls partitions into their parent without listing them, leaves hidden document types out, and shows a partition count or a Marten tenancy table's row count only past that gate, because either is the number of tenants. Functions reads a body when you open its row: Marten's own for everybody, the application's own only with Capabilities.BrowseDatabase and a schema BrowsableSchemas admits. A name in a schema you may not see reads ‹withheld›, as in the browser. If a registered store cannot be built, the tabs keep what the other stores declare and withhold, and say, what that store could own. The reads give up after three seconds behind a migration's lock rather than wait for it. A known limit: Tables and Indexes list the store's own schemas only, so a table handed to StoreOptions.Storage.ExtendedSchemaObjects in a schema of its own (one no document type, the event store or a projection also uses) is not on either tab. The database browser shows it once Capabilities.BrowseDatabase is on, the write policy passes and BrowsableSchemas admits that schema. The tables-and-indexes health checks cover it, and show their findings about it only to a visitor past that same gate.

An apply runs under AutoCreate.CreateOrUpdate, and CreateOrUpdate is not additive. Weasel's update path emits drop index for every physical index your configuration does not declare, drop column for every extra column, alter column … type for a changed one, alter table … drop constraint … CASCADE for a changed primary key, and for a changed partition scheme a create table … as select / drop table … cascade pair that copies the whole table out and back. The preview is rendered under the same mode so what you read is what would run, and the destructive statements are listed in the dialog before a typed confirmation. A hand-made index is dropped by the next apply unless you declare it, or name it in opts.Schema.For<T>().IgnoreIndex("…") — or opts.Events.IgnoreIndex("…") on an event table, and table.IgnoreIndex("…") on a projection's or an ExtendedSchemaObjects table, which an apply migrates just the same — which takes it off both sides so it is neither created nor dropped. The Indexes and Drift tabs say this on screen, and name the index.

Configuration — everything your application told Marten, read back out: serializer, tenancy, schema names, metadata columns, projections, the databases. Never a connection string and never a credential; a database is identified by server, port, name and schema. The studio changes nothing here. A Runtime card names the Marten, JasperFx, Weasel and Npgsql versions the host runs, the host's environment, and which of the features newer Marten releases add this host has.

Activity — the last 500 actions taken through the studio in this process, newest first, with user, scope, action, target, outcome, capability and message. It is in memory and goes away with the process. The durable record is your own ILogger, under the studio's reserved event ids: 9200–9299, and from 0.5 also 9300–9329 and 9400–9519.

The diagnostics API

IPostgresDiagnostics, registered by AddMartenStudio() (and by AddPostgresStudio()), gives your own code what the studio reads: the databases it would list, and for each one the findings, with stable codes and variants, and Storage, Statements, Settings and Connections sections - for an e-mail, an admin page of your own or your own alerting, worded in your own language and keyed on the codes. It answers host code, not a visitor, so no studio policy, capability or ReadOnly is consulted; statement texts, application names, other sessions' evidence and findings about one tenant come back only when the call sets IncludeActivity, which is off by default. The studio never serves a result: no endpoint, no log line above Debug, no metric, no Activity entry. See docs/diagnostics.md.

Multi-tenancy, multiple databases and multiple stores

Scope is a triple — store, database, tenant — chosen in the header and carried in the query string (?store=&db=&tenant=), so a link you paste into a chat reopens the same thing. Every data call resolves that scope and re-asks StoreAuthorizationPolicy about it.

• Stores. The default IDocumentStore is default; every store registered with AddMartenStore<T>() appears under its marker interface's name. IncludeAncillaryStores = false hides the ancillary ones. A store that will not build is shown as an unavailable row with the reason, not silently omitted.
• Databases. A MultiTenantedDatabases or otherwise multi-database store lists its databases; sessions are always opened with SessionOptions.ForDatabase(tenantId, database) so the reads come from the database the selector named and the audit entry recorded. Everything schema-related is per database, never per store.
• Tenants. Three discovery tiers, cheapest first: KnownTenantIds (you said so — nothing is discovered); what Marten itself lists for the database — Marten's own DescribeDatabasesAsync, which answers for a static configuration without touching the database, the tenants a master-table or sharded tenancy's database lists after the enumeration the studio has just made, without a second read of its lookup table, and on a single database with Events.UseTenantPartitionedEvents the tenants Marten has registered, including ones with no data yet; and, when DiscoverTenantIds allows it, a bounded select distinct over every table in the store that has a tenant column, capped at 201 rows and cached for a minute. Past 200 tenants the selector becomes a free-text box, because a picker that silently omits tenants is worse than no picker. The selector says which tier answered. A tenant-partitioned database lists only tenants registered in mt_tenant_partitions: a tenant whose rows are only in a conjoined document type that opts out of partitioning ([DoNotPartition] / DisablePartitioningIfAny) is not listed, and a link naming it is refused until the tenant is registered.

Conjoined tenancy is per document type, so a store whose documents are tenanted while its event store is not is the normal case and is handled: a single-tenanted collection is not filtered by the scope's tenant, because there is nothing to filter on and hiding it would hide something genuinely shared.

Hosting notes

• It works in an API-only host. No .razor file of your own is needed, and you do not need to set RequiresAspNetWebAssets — PostgresStudio, which MartenStudio brings, references Microsoft.AspNetCore.App.Internal.Assets, whose buildTransitive targets define _framework/blazor.web.js as your project's static web asset, two package hops away. Verified against a scratch API-only host that has no Blazor components at all and references only MartenStudio.
• The stylesheet and script moved in 0.5, from {Path}/_content/MartenStudio/ to {Path}/_content/PostgresStudio/ (css/studio.css, js/studio.js). A Content-Security-Policy, WAF rule or proxy allow-list that names the old path must name the new one; every page's URL is unchanged.
• You do not need app.UseAntiforgery(). The studio has no <form> and no <EditForm>; every mutation is a Blazor event over the circuit, and SignalR's own same-origin check is what stands between a cross-site page and that circuit. The studio's component endpoints say .DisableAntiforgery(), so a host that never calls the middleware still gets a 200 for GET /marten. A host that does call it is unaffected — the middleware simply has nothing to validate here.
• Sub-path mounting is a first-class shape. MapMartenStudio("/ops/marten") moves the pages, the /_blazor circuit, the opaque-redirect endpoint, blazor.web.js and the _content/PostgresStudio/ mirror under the path, and the shell renders a studio-rooted <base href>. Every mount is studio-rooted — including the default /marten — so a host that has a Blazor app of its own does not end up with two endpoints on /_blazor.
• Behind a reverse proxy, forward the studio prefix and it works: the studio's plumbing is all under its own path. If the proxy strips a prefix, give the application the same prefix with app.UsePathBase("/…") so that the routes and the <base href> agree; mounting at MapMartenStudio("/ops/marten") and stripping /ops at the proxy without a matching UsePathBase is the shape that renders locally and 404s in production.
• Static assets. app.MapStaticAssets() (or UseStaticFiles()) serves the stylesheet and the studio's browser helpers the normal way. The studio also maps its own _content/PostgresStudio/{**path} endpoints as a fallback, so an API-only host that configures neither still gets a styled, interactive studio. Both are asked for by the studio's own pages and by nothing else: the package ships no Blazor JS initializer, so a host that runs a Blazor app of its own never fetches anything of the studio's on pages that have nothing to do with it. The document names an icon of its own, _content/PostgresStudio/favicon.svg, so the browser does not ask your site root for /favicon.ico.
• A host's own Blazor Server options survive, in either order. Registering the studio does not undo a services.AddServerSideBlazor().AddHubOptions(...) you made before it: the framework's own repeated hub-options registration is left out, so your ClientTimeoutInterval and MaximumReceiveMessageSize stay yours.
• Not trimmable. IsTrimmable=false is stated in the csproj on purpose. Blazor Server sets [Parameter] properties by name from the render tree and the document viewer deserializes into types discovered from IDocumentType.DocumentType at run time; a trimmer told it may cut has no way to see either. An application that publishes trimmed or native AOT does so without the studio.
• There is no "integrate into my own Blazor app" mode. The studio maps its own MapRazorComponents<MartenStudioApp>() root and re-roots it. Adding its pages to your own router is not supported in v1.

Sample application

dotnet run --project samples/MartenStudio.Sample

Then open http://localhost:5210. With no connection string configured, the sample starts a throwaway PostgreSQL container, prints a loud banner saying it did, and seeds a demo domain chosen to make the studio's screens worth looking at: a duplicated unique column, a soft-deleted type with a foreign key and optimistic concurrency, a strong-typed id, a subclass hierarchy in one table, application-assigned string keys, one type with every optional metadata column on and one with all of them off, a two-megabyte document, conjoined multi-tenant invoices, and an event store with three projections, one archived stream and one deliberately poisoned stream that the async daemon turns into dead letters. It never falls back to localhost silently; without Docker it throws with guidance. Set ConnectionStrings:Marten to point it at a database of your own. On its throwaway database (or one --allow-data-generation names) it creates a narrowed role, studio_sample_reader, and sets SqlConsoleRole to it, so the SQL console, the database browser and the health checks read as that role; it creates no role and grants nothing anywhere else.

Postgres Studio has a sample of its own, with no Marten: dotnet run --project samples/PostgresStudio.Sample, then http://localhost:5211 - an admin database and three tenant databases listed through the host's own IPostgresDatabaseSource; see samples/PostgresStudio.Sample/README.md.

Sign in as admin, ops or viewer — the password is the user name. They differ by claim: admin has read, write and destroy, ops read and write, viewer read only, which is how you can see what each layer of the authorization contract does.

Argument order does not matter. The sample's boolean switches — --anonymous, --readonly, --allow-data-generation, --no-daemon — are switches, not --key value pairs: writing one means true and the token after it is left alone, so dotnet run -- --anonymous --urls http://localhost:5000 and dotnet run -- --urls http://localhost:5000 --anonymous do the same thing. An explicit value is still accepted where a script wants to pass a variable (--readonly false, --readonly=false), and only a literal true or false counts as one. --path /ops/marten is a pair and does take the token after it. This needs saying because .NET's own command-line configuration provider does not work that way — it reads --key value pairs, so a bare switch would otherwise swallow your --urls and then drop the URL without a word; SampleOptions.HostArguments reconciles the two before the host sees the arguments.

Demo data generator

In the Development environment (or with --allow-data-generation elsewhere) the sample's landing page carries a Demo data panel for the admin user — presets Small, Medium (about 100 k documents and 100 k events), Large (about 1.2 M documents, 1.25 M events across 250 k streams) and Custom — that runs as a cancellable background job with a progress bar, rows per second, an ETA and the async daemon's lag, plus a truncate that removes exactly what was generated. Documents go in through a binary COPY; order streams go through Marten sessions so the inline projection runs and the async ones have something to catch up on, with one poisoned stream per 10 000 so the dead-letter screen has real content. The studio's own services are measured against the Medium set in every integration run; the Large set runs under MARTENSTUDIO_LARGE=1. See samples/MartenStudio.Sample/README.md. The same panel has Make it unhealthy switches - a pinned gap, a session idle in a transaction, a bloated table, a hogged pool - each turning itself off after ten minutes; see the sample's README.

Security model and limits

The long form is in docs/security.md. The short form:

• Nothing mutating is on by default. Thirteen capability flags, all false, plus ReadOnly. The dashboard that is dangerous by default is the one somebody maps without reading the docs.

• Refusals live in the service layer, not in the markup, and are audited whether they succeed or fail: StudioCapabilityGuard.Require(…) → scope resolution with the write policy → the operation → the audit record.

• The SQL console's real guard is the transaction, not the parser. Every statement runs inside BEGIN; SET TRANSACTION READ ONLY; …; ROLLBACK with statement_timeout, lock_timeout, idle_in_transaction_session_timeout and an optional SET LOCAL ROLE, all set with set_config parameters rather than interpolated text. ReadOnlySqlGuard — which allows only select, with, explain, table and values, and only one statement — exists to produce a better message than SQLSTATE 25006, and treating it as the security boundary is how these features get CVEs.

• A read-only transaction is not a sandbox. select pg_terminate_backend(pg_backend_pid()) runs happily inside one; so do pg_read_file, lo_export, pg_ls_dir, dblink and the session-level advisory-lock family. Those are refused by name through a denylist (ReadOnlySqlGuard.DisallowedFunctions, quoted in full in docs/security.md), and that refusal is worth exactly what a parser's refusal is worth: a determined caller can reach the same function through a view, a SECURITY DEFINER wrapper or an alias, and the list will not see it.

• The only true narrowing is SqlConsoleRole. A Postgres role that was never granted EXECUTE on those functions, and can read only what you meant it to read, cannot be talked around however the call is spelled. Configure one if you enable the console. Without it, the console reads everything the store's own Postgres role can read — every table in the database, Marten's or not.

• Grant RunSql only to people you would give psql to. That is the whole of it.

• EXPLAIN ANALYZE and What if? stay inside the console's transaction. Explain analyze runs the statement, so it runs only in the console, under RunSql, for a statement the guard accepts, and a write the guard misses is refused by Postgres (25006). What if? needs hypopg, which the studio never installs; it imagines one index that a builder wrote, in the read-only transaction, and resets hypopg on the same connection before the connection goes back to the pool - a session whose reset fails ends itself, so no pooled connection keeps a hypothetical index.

• ViewDatabaseActivity shows other people's sessions. pg_stat_activity, pg_locks and pg_stat_statements describe every session on the server, and a statement's text carries literals and other applications' names. Without the capability the advisor and Database › Sessions show counts, ages and states, never who; grant it to the people you would let read other applications' statements. Operations › Statements is behind it too: it reads pg_stat_statements as the store's own role, so another role's statements never appear, but another application's do when it connects as the same role.

• The diagnostics API answers your code, not a visitor. No policy, capability or ReadOnly is asked; it reads nothing your code could not read through the same data source or store, and Activity-grade data needs IncludeActivity. If you expose a result, put it behind your own authorization.

• LINQ mode evaluates an expression somebody typed, inside your application. Marten evaluates in process every part of a predicate that does not reference the document, so the text passes the studio's own lexical screen, JasperFx's Dynamic LINQ allow-list and the studio's own walk of the parsed expression before Marten sees it, and only literals reach Marten's evaluator. It reads any document of a type the visitor can see, as Marten's own Query<T>() reads it. Grant RunLinqQueries to people trusted with the store's data; docs/linq-mode.md has the threat model.

• Mode A is guarded differently, because it needs no capability. The studio composes the statement itself — select … from <table> as d where 1 = 1 and <tenant> and <not deleted> and ( <your clause> ) and <tenant> and <not deleted> — so the tenant in the header and the soft-delete rule apply exactly as they do in the Documents browser, and the SQL the page shows is the SQL that ran. The studio's terms are repeated after your predicate as well as before it, because a parenthesised predicate only contains an or while the parentheses hold. The clause may not carry a second statement, be a statement of its own, leave a bracket unbalanced, hang anything but a sort list off order by, call a function that reads, writes or waits outside the row, or cast to regclass/regproc — none of which RunSql lifts. What RunSql lifts is reaching another relation: subquery, union, join, lateral, returning. The scanner errs towards refusing, and every refusal names what would lift it.

• Audit. Every mutating operation and every refusal is written to a 500-entry in-memory ring (the Activity page) and to your ILogger under the reserved event ids 9200–9299, which is the copy that survives a deployment. 9200 ActionPerformed, 9201 ActionFailed, 9202 CapabilityDenied, 9203 ScopeAuthorizationDenied, 9204 SqlExecuted, 9205 SqlRejected, 9206 SchemaChangeApplied, 9207 ProjectionRebuildStarted, 9208 ProjectionRebuildFinished, 9209 DaemonControlRequested, 9210 StoreUnavailable, 9211 DocumentWriteRoundTripDropped. A database browser's first read of a relation's rows is 9235 and an opened row 9236, a read of other sessions' details is 9245, a LINQ mode run, refusal and Postgres failure are 9260, 9261 and 9262, a bloat measure is audited as "Measure bloat", and the Statements page's first read in a circuit is 9452. The ranges 9200–9299, 9300–9329 and 9400–9519 are reserved. Every value a visitor could shape - a typed ?store=, a statement, a reason - reaches the log escaped and bounded, so it cannot write a log line of any length or forge a second one.

• Log levels. A state the host configured is not a warning. No async daemon in this process, a daemon run by an external system (AsyncMode = ExternallyManaged, which Wolverine's managed distribution sets), event tables that do not exist yet, a speculative count or a query of your own running out of its budget — each is a value the page already shows, logged at Debug at most. A real anomaly on a path the studio polls every RefreshInterval is logged at Warning once per store, database and exception type per ten minutes, and at Debug in between, so filter on the event id rather than muting the category:

  Id	Event	Logged when
  9202, 9203	CapabilityDenied, ScopeAuthorizationDenied	Always Warning: a capability or policy refused an action
  9210	StoreUnavailable	A registered store will not build
  9211	DocumentWriteRoundTripDropped	Always Warning: an edit was saved and the round trip dropped properties
  9212	DaemonUnreachable	A registered coordinator answered with something other than a daemon for this database, or could not be constructed for a reason other than Wolverine's unknown-store shape
  9213	StoreDatabasesUnreadable	A store's databases could not be listed
  9214	PostgresVersionUnreadable	The server version could not be read; for a store with no default database (master-table, sharded, or static without AsDefault()) it is unknown, at Debug
  9215	ShardTrackerUnobservable	The in-process shard tracker could not be observed
  9216	ProjectionSummaryUnreadable	The Overview's or the navigation's projection summary failed
  9217	EventReadFailed	An event-store read failed for a reason other than a statement timeout, or IsDocumentTypeVisible threw for DeadLetterEvent
  9218	StreamTimestampMissing	A hand-migrated mt_streams has a row with a null timestamp
  9219	TenantDiscoveryFailed	The scope selector could not discover a store's tenants
  9220	LiveUpdateHandlerFailed	A page's own refresh-failure handler threw
  9221	TenantPolicyFailed	The store policy threw while the scope selector filtered a database's tenants
  9222	HealthCheckFailed	A health check failed for a reason nobody chose; one the host's setup rules out is Debug
  9246	SessionActivityReadFailed	Database › Sessions could not read the sessions for a reason other than a privilege or a timeout
  9251	DiagnosticsSectionFailed	The diagnostics API could not read a section of a snapshot
  9270	HealthExportFailed	The opt-in health check itself failed, so it reports Degraded
  9320	SubscriptionRewindRefused	Always Warning: Marten refused a dead-letter rewind as an unknown subscription; its words are here and not on the page
  9410	StorageReadFailed	The Storage page could not read the database's sizes for a reason nobody chose
  9420	BloatMeasureFailed	Always Warning: a bloat measure a visitor pressed failed for an unexpected reason
  9430, 9431	ReplicationReadFailed, TablespaceSizeFailed	A Replication section could not be read; a tablespace size a visitor asked for failed (always Warning, one line per click)
  9440	ServerFactsReadFailed	A section of the Server page could not be read
  9451	StatementsReadFailed	The Statements page could not read pg_stat_statements for a reason nobody chose
  9500, 9501	CapacitySourceFailed, AuroraReadFailed	The host's IPostgresCapacitySource threw or timed out; one of Aurora's own reads failed

• What the studio never does: start a second projection daemon, execute DDL on a read or navigation path of its own (the exception is Marten's: the first enumeration of a master-table, sharded or single-server tenancy, under Current limitations), write document DML of its own, replace your StoreOptions.Logger, or show a connection string or a credential anywhere.

Current limitations

• Mode A takes no parameters. The clause is handed to Marten as SQL text; there is no ?/@p binding, so a literal you paste in is SQL too. What keeps that from being an ungated console is the clause guard — no second statement, balanced brackets, the function denylist, and without RunSql no nested read — together with the read-only transaction it runs in; not a parameter you could have put the value in safely.
• No push, no hub. Live pages poll at RefreshInterval through a single-flight snapshot cache, paused on hidden tabs; only projection state gets sub-second updates, and only where the daemon is hosted in this process. There is no SignalR hub of the studio's own in v1 — adding one would add a host-visible endpoint for something polling covers.
• No patch, no bulk update. Documents are edited one at a time through a full round trip. Deleting a selection is supported; changing one is not.
• Earlier versions of a document are only visible where there is an event stream. Marten keeps one row per document, so the studio can show you the current document and — for an aggregate — replay its stream to any version. There is no per-document history for a plain document type.
• Editing a hierarchy row has edges. A subclass row is previewed and saved as the subclass, but a row stamped with a subclass this process does not map, or a hierarchy row with no discriminator under an abstract root, is refused by name rather than rewritten as its root type. Undelete is refused outright for a document whose id the studio cannot build a typed expression for.
• No "integrate into my own Blazor app" mode. The studio maps its own component root; its pages cannot be added to your router (D11).
• No keyboard cheat sheet. The JSON viewer, its search bar and the editor have keyboard handling, but there is no global shortcut map and no page that lists what exists.
• No live SQL tail. It would require replacing your StoreOptions.Logger, which is exactly the "registration changes host behaviour" failure this project refuses. Every generated grid carries a "Show SQL" disclosure instead.
• Read-only and the capabilities are process-wide, not per store, per database or per tenant. Which scopes a visitor sees is expressible, through StoreAuthorizationPolicy; "this tenant may edit but not delete" is not.
• Counts are estimates above ExactCountThreshold. A ~ prefix says so. The = beside a collection asks for an exact count(*): below the threshold you get one, bounded by Npgsql's CommandTimeout (from QueryTimeout) rather than by a server-side statement_timeout; above it the answer is the same estimate marked "estimate only", with the reason on the badge, and the button is not offered again. The exception is a conjoined collection under a tenant scope: that count is where tenant_id = …, which Marten makes index-backed by putting tenant_id first in the primary key, so it is always counted exactly — and such a visitor is never shown the whole-table estimate at all, because reltuples counts every tenant's rows.
• A mapping made after the host has started is never checked by the startup guard — from a hosted service, or a lazily built EndpointDataSource. Map the studio while the application is being built.
• Some of the studio needs a newer Marten than its floor. The package depends on Marten 9.39.0 and works there; what later releases add lights up at run time, and the Configuration page's Runtime card says which of it this host has. LINQ mode needs Marten 9.48+ (JasperFx 2.84) and is absent below it. The FillFactor and StorageParameter remedies, the Schema screen's storage-parameter drift and E08's DcbTagVersionFillFactor need 9.47+. D03 reads the high-water agent's own liveness stamp from 9.43; below it, an old stamp says nothing and D03 says it cannot tell. Telling that a projection is being rebuilt by something other than Marten Studio needs 9.50 (JasperFx 2.86): below it, Start cannot see such a rebuild and warns that it cannot, and a start during one runs a second agent beside the replay. On a store that numbers events per tenant (UseTenantPartitionedEvents), Skip event and Rewind subscription on the dead-letter page need 9.51: from it each acts on one tenant, and a rewind is offered only for a tenant whose agent the daemon in this process runs; below it both are refused, because Marten skips and rewinds by a number every tenant has. Compacting a stream whose folded events carry DCB tags needs 9.51 too; below it Postgres refuses the delete and nothing changes. The Schema screen's Check, Preview and Generate script buttons create Marten's HiLo objects (mt_hilo, mt_get_next_hi) below 9.50.3 and nothing from it, and each says which. From 9.52 a rebuild replays from the projection's start floor rather than from the first event, so the rebuild dialog names the floor stored for it in mt_event_projection_floors (read with the studio's own SQL) and says that a floor set in code may apply; D05 stops offering SkipApplyErrors for a database error in projection code, which from 9.52 pauses the shard at any setting and is never dead-lettered; and the Advance high water mark dialog says that the advance first ensures the event store's storage - with no tenant selected in every database of the store, each under its own AutoCreate - and, on a store that numbers events per tenant, which tenants' marks it moves. The edit dialog shows Marten's own preview of a save from 9.53.
• Enumerating a dynamic tenancy's databases is not read-only, at any Marten through 9.54.2. AllDatabases() and DescribeDatabasesAsync() build the tenancy's databases, and the first time a store instance does, a master-table or sharded tenancy applies its lookup table and upserts its seed rows, and a single-server tenancy creates every configured database that does not exist yet. The lookup table's apply is gated, and from Marten 9.51 run, under the tenancy's own AutoCreate when it sets one and the store's AutoCreateSchemaObjects otherwise; below 9.51 it always runs under the store's (All included, and a store's None becomes CreateOrUpdate when the tenancy's own says anything else). A tenancy that sets none applies under the store's mode at every version. The studio enumerates on the first navigation, so in a process that runs no daemon of its own it can be that first caller; a host whose daemon runs in-process, or that applies on startup, has always enumerated before it. The opt-in health check's own listing never enumerates one (AGENTS.md D27); a hosted projection coordinator it asks for its daemons enumerates the store, as its own leadership loop does every cycle.
• Marten Studio is a store console, not an ETL tool. Import, dumping a whole collection, copying between stores and scripted migration are outside it. The Query page exports the page you are looking at — the row cap has already stopped the reader by then — and never a table.

Building from source

.\build.ps1 Test                 # restore, compile, run all four test projects
.\build.ps1 Test --playwright    # ... and install the Chromium build the browser suites drive first
.\build.ps1 Pack                 # both NuGet packages into artifacts/packages

The fast suites need nothing:

dotnet test tests\MartenStudio.Tests
dotnet test tests\PostgresStudio.Tests

The integration suite needs Docker — run docker info first. It starts one postgres:17-alpine through Testcontainers and reuses it between runs locally; a few classes start a server of their own, never reused: a postgres:17-alpine with settings of its own, and pgvector/pgvector:0.8.1-pg17 for the pgvector tests. Any run that might overlap another must opt out, because schema names derive from test class names and two runs on one reused container drop each other's tables:

$env:MARTENSTUDIO_PG_REUSE='false'
dotnet test tests\MartenStudio.Integration.Tests
dotnet test tests\PostgresStudio.Integration.Tests

Postgres Studio's live suite has a container reuse identity of its own and never attaches to the Marten suite's; its version matrix starts one server per PostgreSQL major, 14 to 18, and 19's release candidate as a preview.

(TESTCONTAINERS_REUSE_ENABLE is not read by Testcontainers 4.x and must not be used.)

.\build.ps1 Browsers installs the Chromium build the browser tests drive. It is deliberately opt-in locally — a developer should not pay a 150 MB download for a test run — and automatic on CI, where a missing browser has to be a failure rather than a silent skip.

Contributing

AGENTS.md at the repository root is the single source of truth for this codebase: the hard rules, the numbered design decisions with their rationale, the package budget and the directory layout. Read it before opening a pull request — several of the rules exist because the obvious thing was tried and broke something.

License

MIT. See LICENSE.
